(1.92.87/08) - (VAR.493) REAR MUDGUARDS IN LOWER POSITION - L/CAB

Запчасти Case IH JX1075N (1.92.87/08) - (VAR.493) REAR MUDGUARDS IN LOWER POSITION - L/CAB (10) - OPERATORS PLATFORM/CAB

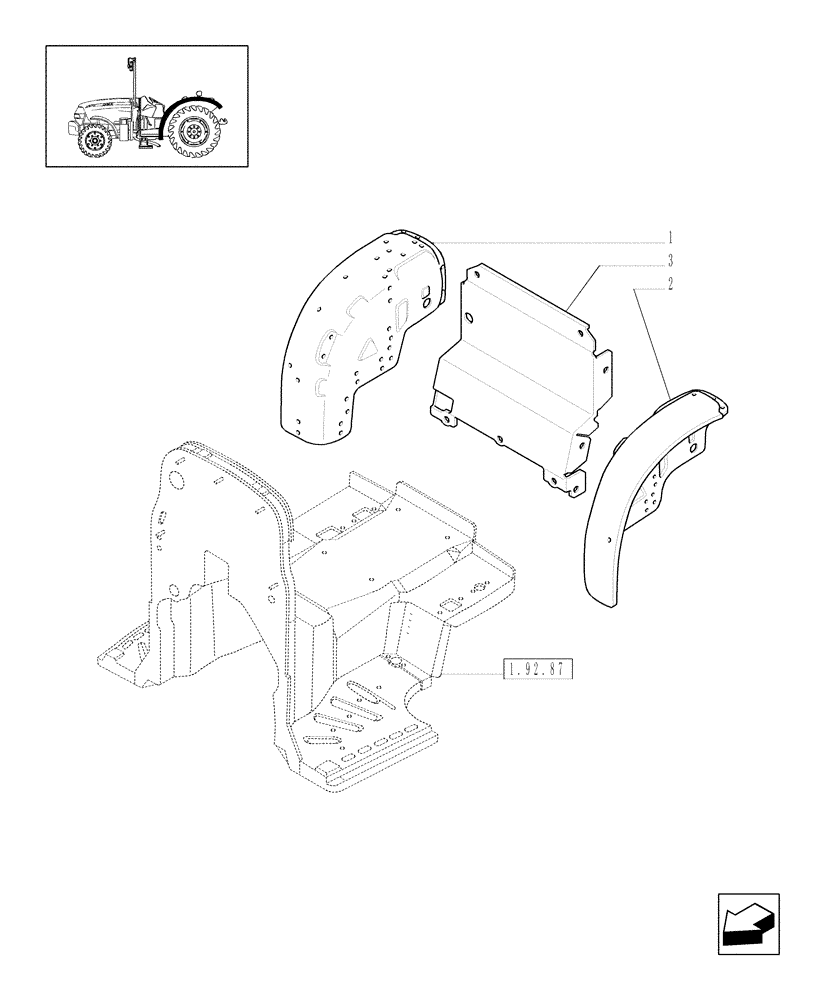

Схема запчастей Case IH JX1075N - (1.92.87/08) - (VAR.493) REAR MUDGUARDS IN LOWER POSITION - L/CAB (10) - OPERATORS PLATFORM/CAB
3
2
1
1.92.87
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47134619

REAR FENDER

RH

1шт.

2

47134620

REAR FENDER

LH

1шт.

3

5188329

PARTITION

JX1060V, JX1070V, JX1075V

1шт.

3

5188336

PARTITION

JX1070N, JX1075N, Serial Range: -HJC047269

1шт.

3

5188338

PARTITION

JX1070N, JX1075N, Start Serial: HJC047270

1шт.
