Запчасти Case IH JX1075N (1.92.87/01) - CAB - COVERINGS (10) - OPERATORS PLATFORM/CAB

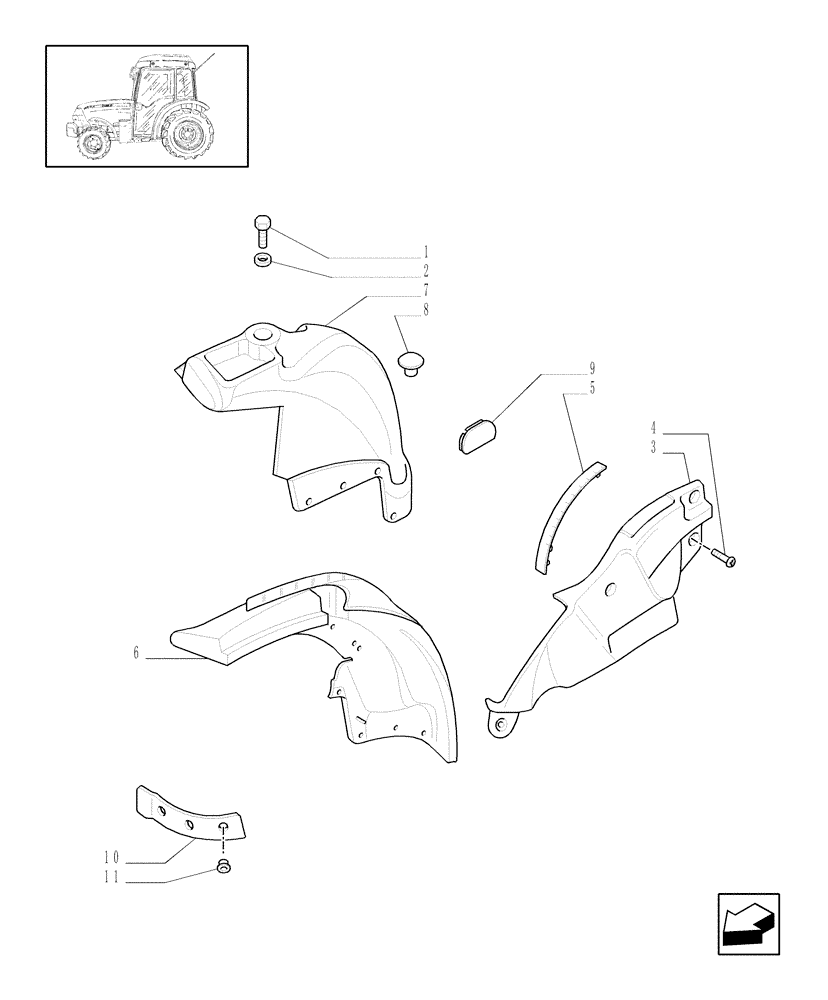

Схема запчастей Case IH JX1075N - (1.92.87/01) - CAB - COVERINGS (10) - OPERATORS PLATFORM/CAB
1
5
11
6
10
9
3
2
8
4
7

Артикул

Название

Примечание

Количество

1

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

10шт.

2

11195574

BELLEVILLE WASHER,M6 Bolt Size x 24mm OD x 1.5mm Thk

10шт.

3

5190233

COVER

1шт.

4

13279314

SCREW,Pozidriv Pan Hd, M8 x 18mm

4шт.

5

44914720

SECTOR

TOOTHED SECTOR

1шт.

6

47131960

COVER

RH, L/EDC, JX1060V, JX1070V, JX1075V

1шт.

6

47131961

COVER

RH, W/EDC, VAR.821-832, JX1060V, JX1070V, JX1075V

1шт.

6

47131964

COVER

RH, L/EDC, JX1070N, JX1075N

1шт.

6

47131965

COVER

RH, W/EDC, VAR.821-832, JX1070N, JX1075N

1шт.

7

47131959

COVER

LH, JX1060V, JX1070V, JX1075V

1шт.

7

47131963

COVER

LH, JX1070N, JX1075N

1шт.

8

44914713

PLUG

12шт.

9

5189858

PLUG,30mm, Black

W/EDC, VAR.821-832

1шт.

10

5192867

DOOR SILL MOULDING

RH, JX1060V, JX1070V, JX1075V

1шт.

10

5192868

FOOT BOARD

LH, JX1070N, JX1075N

1шт.

10

5192869

PLATE

RH, JX1060V, JX1070V, JX1075V

1шт.

10

5192870

DOOR SILL MOULDING

LH, JX1070N, JX1075N

1шт.

11

44911688

PLUG,5mm ID x 18mm OD x 6mm Thk

1шт.

Выбрано товаров: 18
