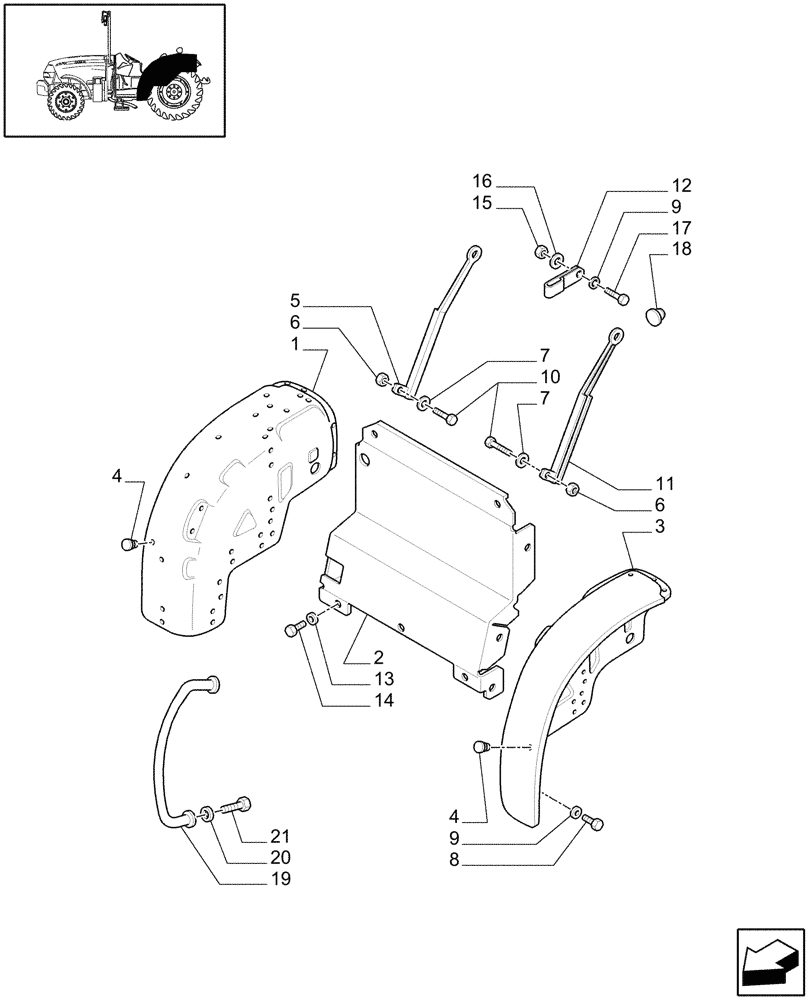

Запчасти Case IH JX1075N (1.92.87[02]) - MUDGUARDS AND FOOTBOARDS - L/CAB (10) - OPERATORS PLATFORM/CAB

1

5186966

REAR FENDER

RH

1шт.

2

5188329

PARTITION

JX1060V, JX1070V, JX1075V

1шт.

2

5188336

PARTITION

JX1070N, JX1075N

1шт.

3

5187739

REAR FENDER

LH

1шт.

4

5120043

PLUG,12mm, Black

DIA=12

2шт.

5

5189164

SHIELD

RH

1шт.

6

12574215

NUT,M6 x 1, Cl 8

2шт.

7

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

8

14783714

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 16mm, Cl 5.8

12шт.

8

14783914

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

6шт.

9

11198574

BELLEVILLE WASHER,Belleville, M10.5

20шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

11

5189165

SHIELD

LH

1шт.

12

5188267

COLLAR CLAMP,13mm ID x 20mm W

2шт.

13

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

3шт.

14

5182280

SCREW,Hex, M8 x 16mm, Cl 8.8

3шт.

15

12164714

NUT,M10 x 1.25, Cl 8

2шт.

16

13550404

WASHER,10.2mm ID x 20mm OD x 2mm Thk

DIA=10

2шт.

17

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

18

5125039

PLUG

DIA=8

2шт.

18

5155362

PLUG,17mm

DIA=17

1шт.

18

5155575

PLUG,10mm, Black

DIA=10

2шт.

18

5155613

PLUG,14mm , Black

DIA=14

28шт.

19

5187572

HANDRAIL

2шт.

20

5185284

GASKET

2шт.

21

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

4шт.
