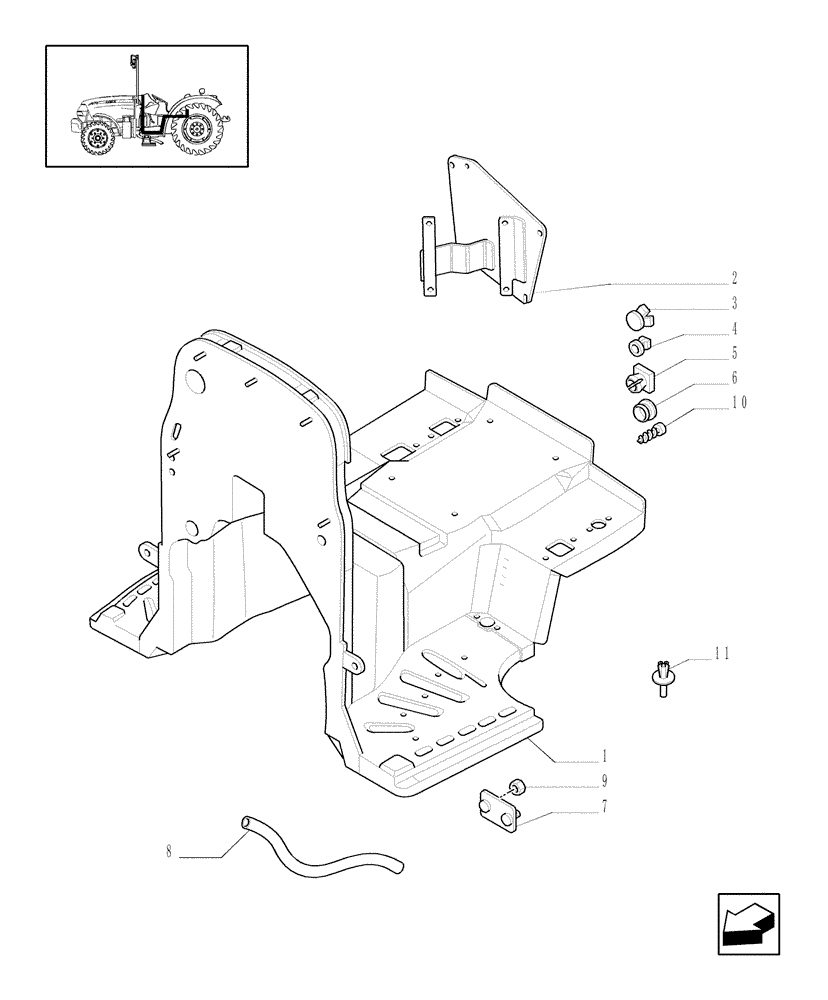

Запчасти Case IH JX1075N (1.92.87[01]) - MUDGUARDS AND FOOTBOARDS - L/CAB (10) - OPERATORS PLATFORM/CAB

1

47130606

PLATFORM

JX1060V, JX1070V, JX1075V

1шт.

1

47130608

PLATFORM

JX1070N, JX1075N

1шт.

2

47133838

LOCKING TAB

1шт.

3

5112608

PLUG,9mm, Black

DIA=9

6шт.

4

5155613

PLUG,14mm , Black

DIA=14

28шт.

5

5107721

PLUG,7.7mm, Black

2шт.

6

5120060

PLUG,30mm, Black

M39

2шт.

7

5188636

BRACKET

JX1070N 4WD, JX1075N 4WD

1шт.

8

85805383

CABLE TIE

CABLE STRAP

4шт.

9

16104121

NUT,M8 x 1.25, Cl 10

2шт.

10

14592587

BUTTON,Button, M6.50 x 3.50mm

6.5x3.5

4шт.

11

5187129

BUTTON

414шт.
