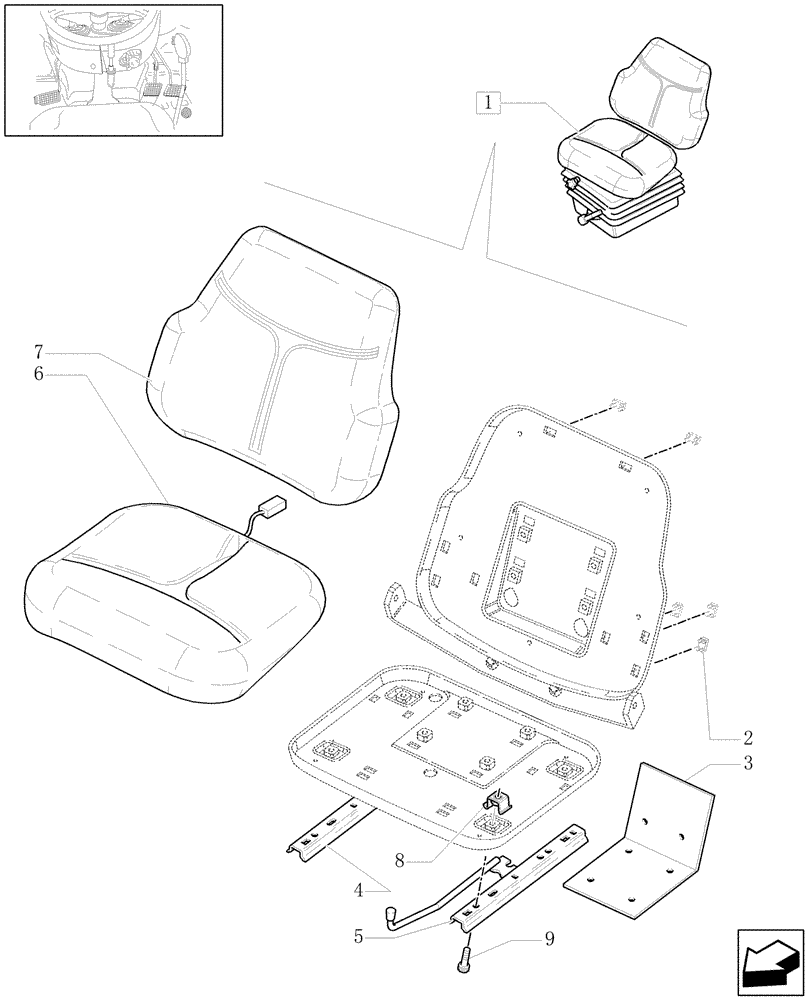

Запчасти Case IH JX1075N (1.92.85/05A[01]) - (VAR.963) CASE SEAT WITH BELTS AND SWITCH - W/CAB - BREAKDOWN - C5644 (10) - OPERATORS PLATFORM/CAB

1

47132539

DRIVER SEAT

CASE CLOTH, W/BELTS, W/SWITCH

1шт.

2

5197874

RETAINER COLLAR

8шт.

3

47130730

PLATE

1шт.

4

47136924

GUIDE

RH

1шт.

5

47130725

GUIDE

LH

1шт.

6

47132692

SEAT CUSHION

1шт.

7

47132694

SEAT BACK

1шт.

8

14649390

NUT

4шт.

9

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.
