Запчасти Case IH JX1075N (1.92.85/04) - (VAR.859) CASE SEAT WITH AIR SUSPENSION, SWITCH - W/CAB (10) - OPERATORS PLATFORM/CAB

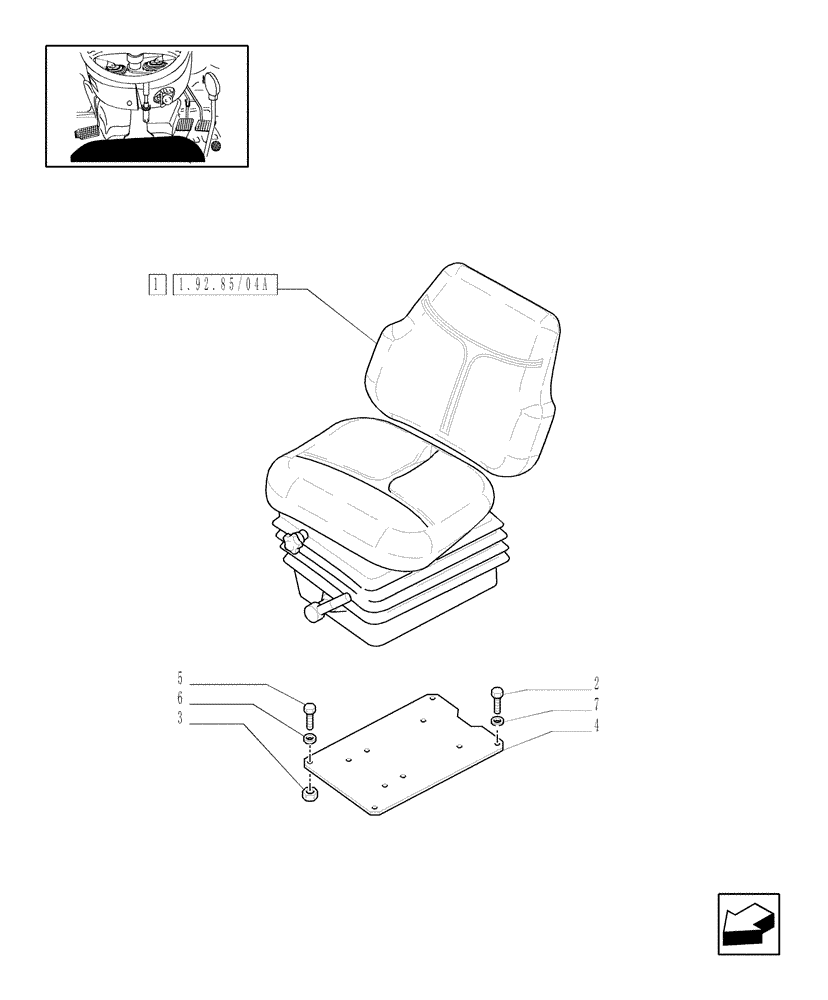

Схема запчастей Case IH JX1075N - (1.92.85/04) - (VAR.859) CASE SEAT WITH AIR SUSPENSION, SWITCH - W/CAB (10) - OPERATORS PLATFORM/CAB
5
7
1
6
1.92.85/04a
4
3
2

Артикул

Название

Примечание

Количество

1

47134643

DRIVER SEAT

CASE CLOTH, W/SWITCH, W/AIR SUSP

1шт.

2

14442027

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

5182253

NUT

M8x1.25

2шт.

4

5196614

PLATE

1шт.

5

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

M8x1.25x22

2шт.

6

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

8x16x1.9

4шт.

7

10516674

LOCK WASHER,M8

4шт.

Выбрано товаров: 7
