Запчасти Case IH JX1075N (1.92.85/02B[01]) - (VAR.197) CASE SEAT, WITH BELTS, WITHOUT SWITCH - W/CAB - BREAKDOWN - D5644 (10) - OPERATORS PLATFORM/CAB

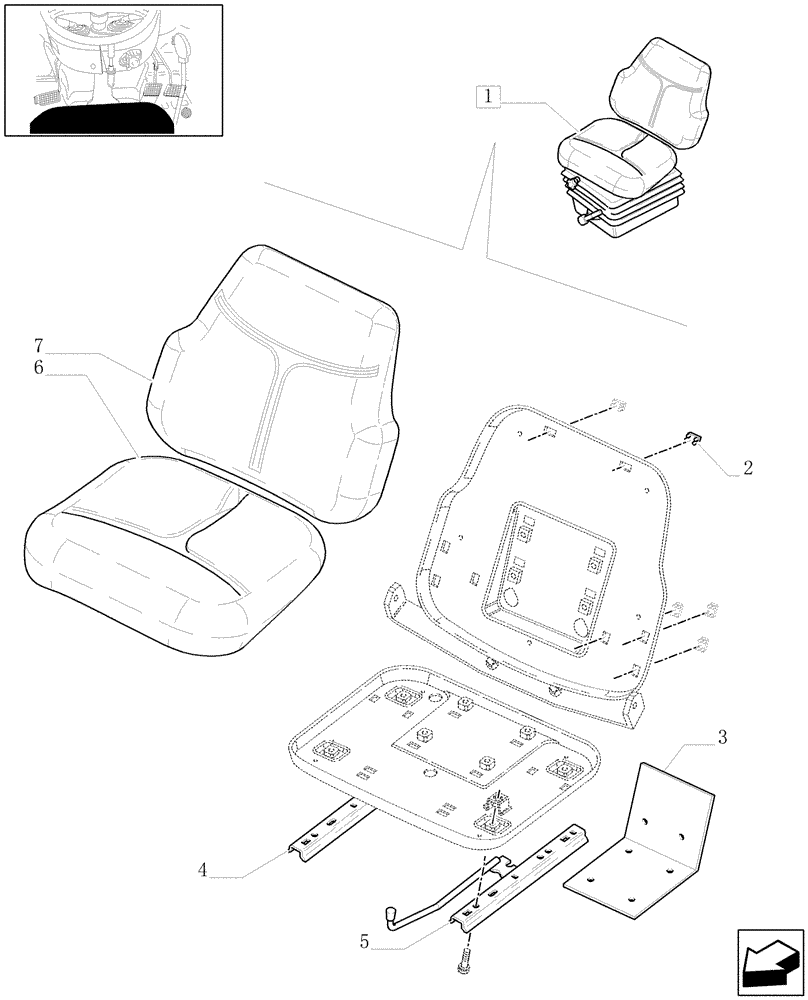

Схема запчастей Case IH JX1075N - (1.92.85/02B[01]) - (VAR.197) CASE SEAT, WITH BELTS, WITHOUT SWITCH - W/CAB - BREAKDOWN - D5644 (10) - OPERATORS PLATFORM/CAB
3
7
6
4
2
5
1

Артикул

Название

Примечание

Количество

1

87553488

DRIVER SEAT

CASE CLOTH, W/SEAT BELT, L/SWITCH

1шт.

2

5197874

RETAINER COLLAR

8шт.

3

47130730

PLATE

1шт.

4

47136924

GUIDE

RH

1шт.

5

47130725

GUIDE

LH

1шт.

6

47132694

SEAT BACK

fabric, wheat

1шт.

7

47132693

SEAT CUSHION

fabric, wheat

1шт.

Выбрано товаров: 7
