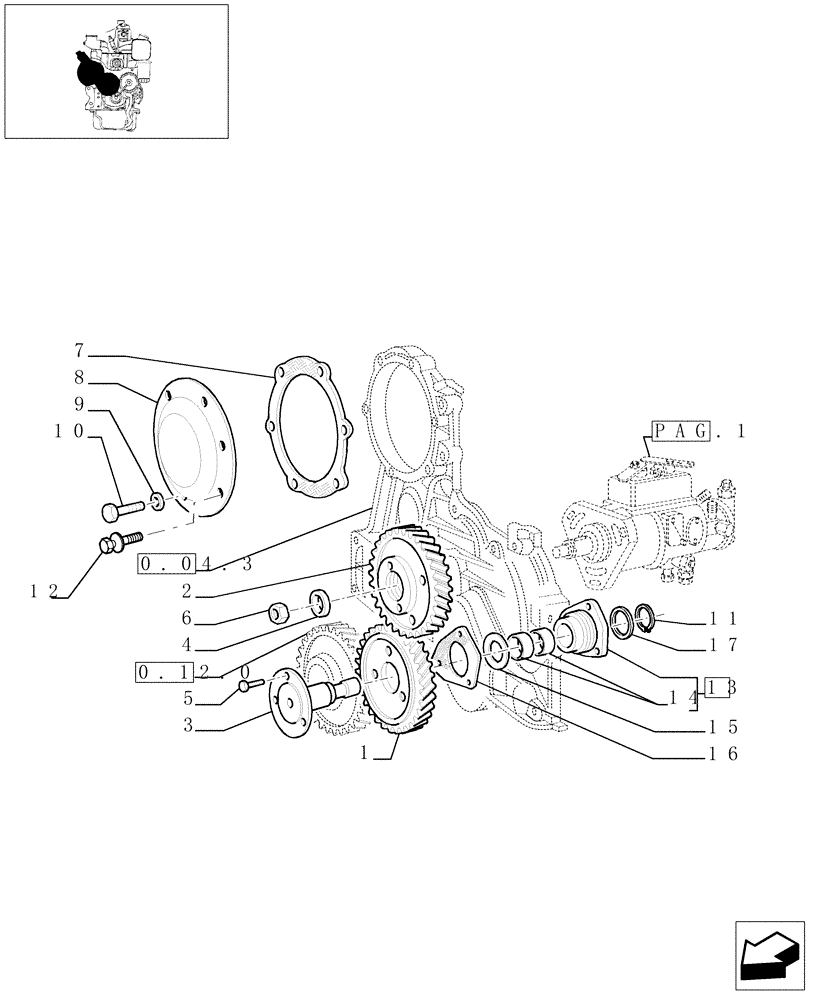

Запчасти Case IH JX1075N (0.14.0/01[02]) - FUEL INJECTION PUMP DRIVE GEARS & TIMING COVER (01) - ENGINE

1

4770056

GEAR

1шт.

2

504064597

GEAR

1шт.

3

4784054

SHAFT

1шт.

4

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

1шт.

5

4798845

BOLT,M8 x 1.25 x 16.50mm

M8 x 1.25 x 16.5

4шт.

6

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

1шт.

7

98400781

GASKET,0.8mm Thk

1шт.

8

4783048

COVER

1шт.

9

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

6шт.

10

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

4шт.

11

4769420

SNAP RING,33.20mm ID

1шт.

12

61315661

BOLT

1шт.

13

4784055

SUPPORT

1шт.

14

4769418

BUSHING

2шт.

15

4667452

WASHER,37.1mm ID x 55mm OD x 1.5mm Thk

1шт.

16

98400787

GASKET,0.8mm Thk

2шт.

17

4769419

WASHER

1шт.
