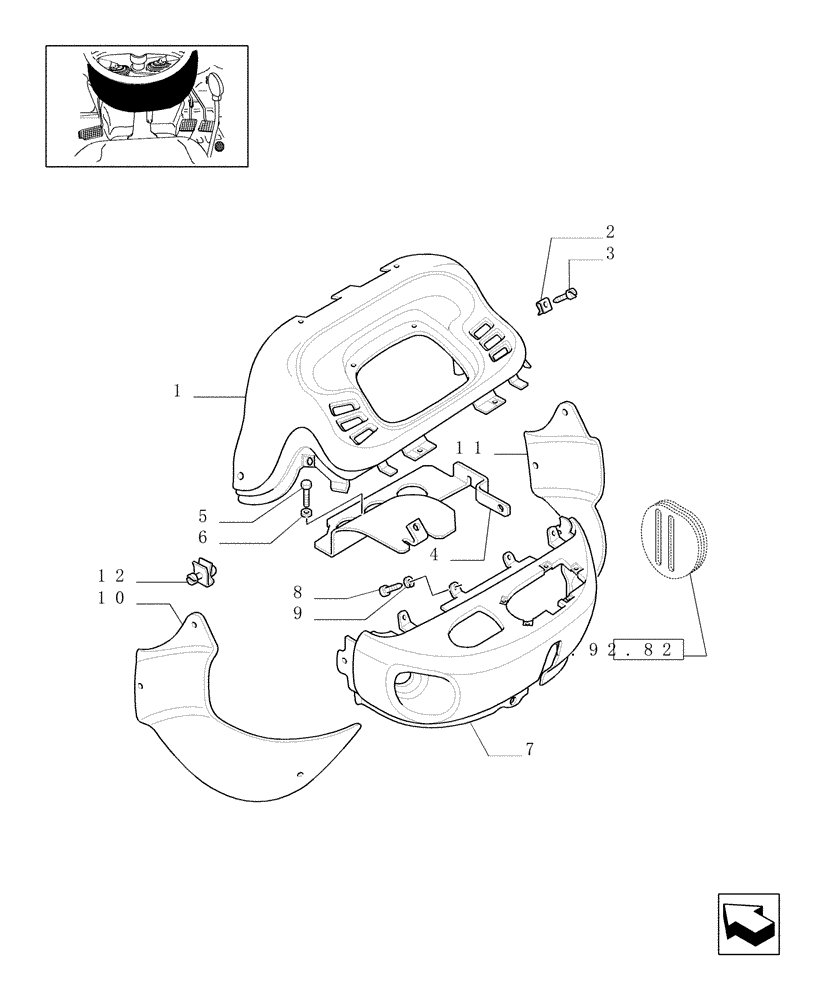

Запчасти Case IH JX1075N (1.92.83/02) - (VAR.297) HI-LO NA - FRONT CONSOLE TRIM (10) - OPERATORS PLATFORM/CAB

1

5199936

INSTRUMENT PANEL

1шт.

2

14189976

NUT,J, #6

9шт.

3

15644007

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 13mm

1шт.

4

5174515

BRACKET

1шт.

5

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

6

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

6

12035670

LOCK WASHER

M6

4шт.

7

5190366

COVER

1шт.

8

5182250

SELF-TAP SCREW,Phillips Drive, Round HD, M4 x 16mm

4x16

4шт.

8

5182249

SELF-TAP SCREW,Pan Hd, M4.2 x 1.4 x 13mm

8x13

9шт.

9

14496204

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

4шт.

10

5175279

SIDE PANEL

LH

1шт.

11

5190367

PANEL

RH

1шт.

12

5174673

FASTENER,12mm OD

6шт.
