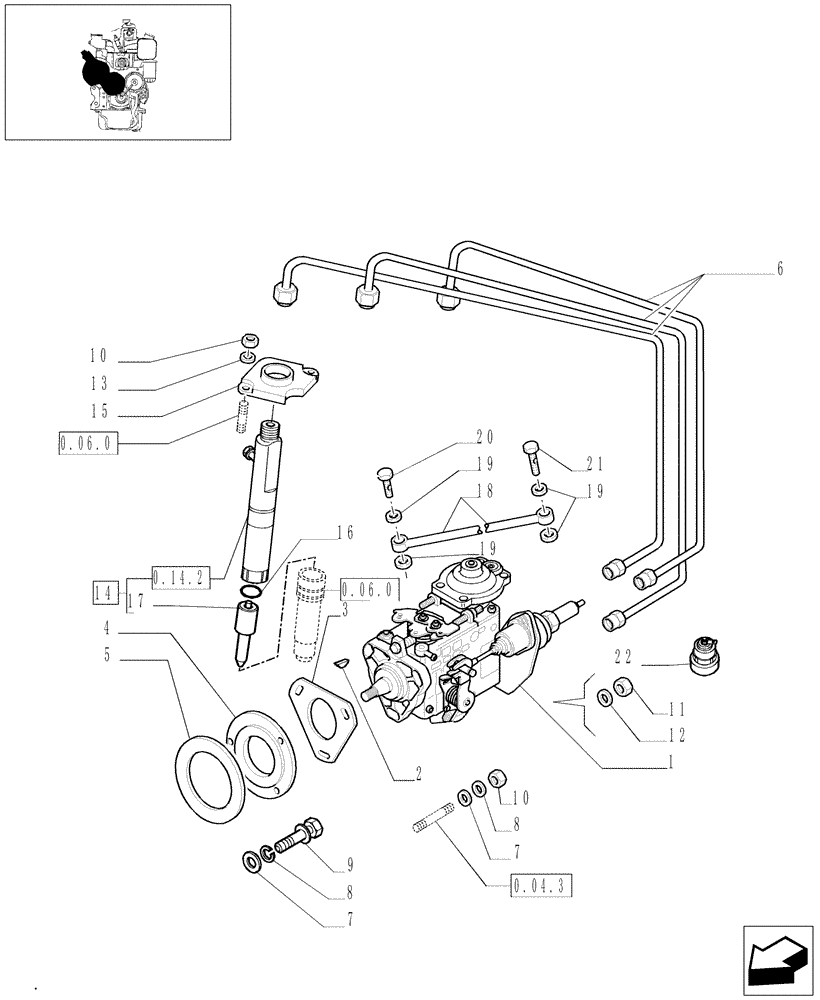

Запчасти Case IH JX1075N (0.14.0/01[01]) - FUEL SYSTEM, INJECTORS & FUEL LINES (01) - ENGINE

1

504054475

FUEL INJECTION PUMP

JX1070V, JX1070N

1шт.

1

504054475R

REMAN-INJECTION PUMP

JX1070V, JX1070N

1шт.

1

504054475C

CORE-INJECTION PUMP

Return Number

1шт.

1

504042213

FUEL INJECTION PUMP

JX1075V, JX1075N

1шт.

1

504042213R

REMAN-INJECTION PUMP

JX1075V, JX1075N

1шт.

1

504042213C

CORE-INJECTION PUMP

Return Number

1шт.

2

10205810

WOODRUFF KEY,4mm x 6.5mm x 15.72mm

1шт.

3

4851923

GASKET,0.8mm Thk

1шт.

4

4607646

SPACER,50mm ID x 116.05mm OD x 6mm L

1шт.

5

98400782

GASKET,0.8mm Thk

1шт.

6

99441952

HOSE KIT

1шт.

7

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

3шт.

8

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

9

500327046

SCREW

1шт.

10

43362

NUT,M8 x 1.25, Cl 10

9шт.

11

86509265

NUT,M5, Cl 10

1шт.

12

11199271

LOCK WASHER

M5

1шт.

13

771326

WASHER,8.40mm ID

D=8 mm

6шт.

14

500307714

FUEL SYSTEM INJECTOR

3шт.

14

500307714R

REMAN-INJECT NOZZLE

3шт.

14

500307714C

CORE-NOZZLE, INJECT

Return Number

3шт.

15

4780612

BRACKET

3шт.

16

80066297

O-RING

D=8 x 1 x 26 mm

3шт.

17

99469341

NOZZLE

3шт.

18

99485806

RIGID TUBE

1шт.

19

2852057

SEALING WASHER,M8 x 12 x 1 Thk

4шт.

20

4753761

BANJO BOLT

1шт.

21

4833907

BANJO BOLT

1шт.

22

2852741

SOLENOID

Fuel Shutoff

1шт.
