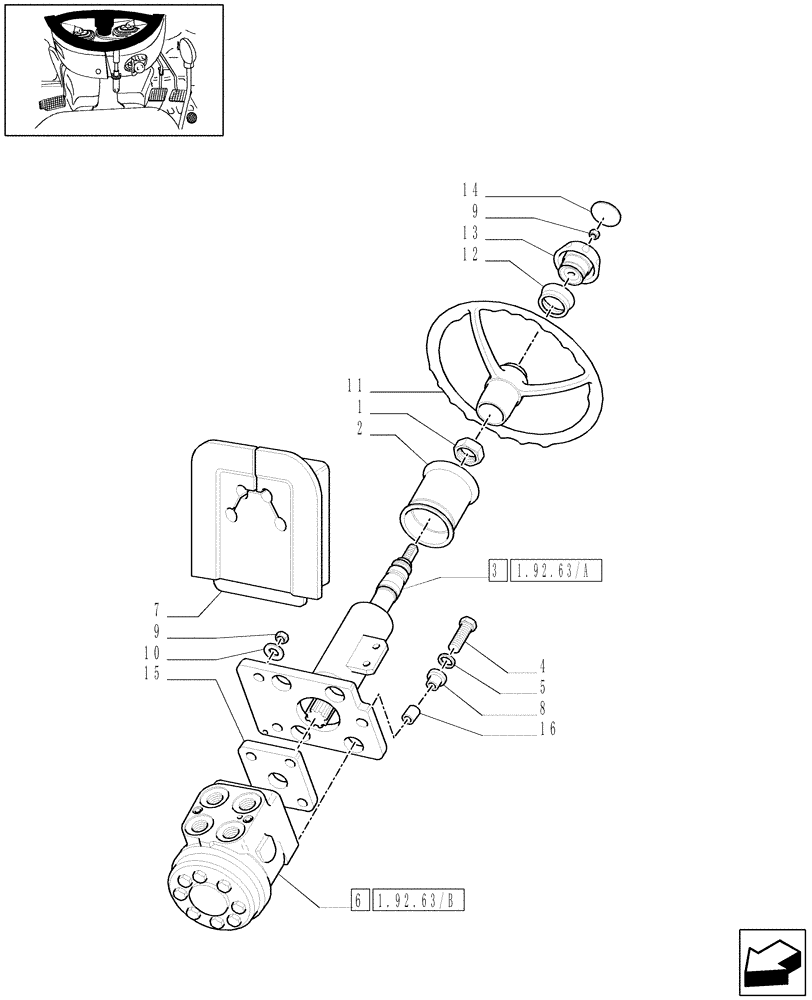

Запчасти Case IH JX1075N (1.92.63) - STEERING WHEEL, COLUMN, HYDRAULIC STEERING MOTOR (10) - OPERATORS PLATFORM/CAB

1

10726621

THIN NUT,Thin, M18 x 1.5, Cl 05

1шт.

2

87305296

SHIELD

1шт.

3

5186055

STEERING COLUMN

1шт.

4

11106624

SCREW,Hex, M10 x 1.5 x 35 mm, Cl 8.8, Full Thd

4шт.

5

12626224

WASHER,10.2mm ID x 25mm OD x 3mm Thk

4шт.

6

5196525

HYDRAULIC STEERING,80CC, 170 Bar

2WD

1шт.

6

5196527

HYDRAULIC STEERING

4WD

1шт.

7

5174492

PAD

1шт.

8

5197926

PLASTIC-RUBBER TUBE,14mm ID x 20mm OD x 16mm L

1шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.

10

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

11

5174046

STEERING WHEEL

1шт.

12

5175326

O-RING,36mm ID

1шт.

13

5173996

KNOB

1шт.

14

5167540

EMBLEM

1шт.

15

5197927

SHIM,45mm ID x 82mm OD x 5mm Thk

1шт.

16

5197925

SPACER,10.1mm ID x 14mm OD x 20mm L

4шт.
