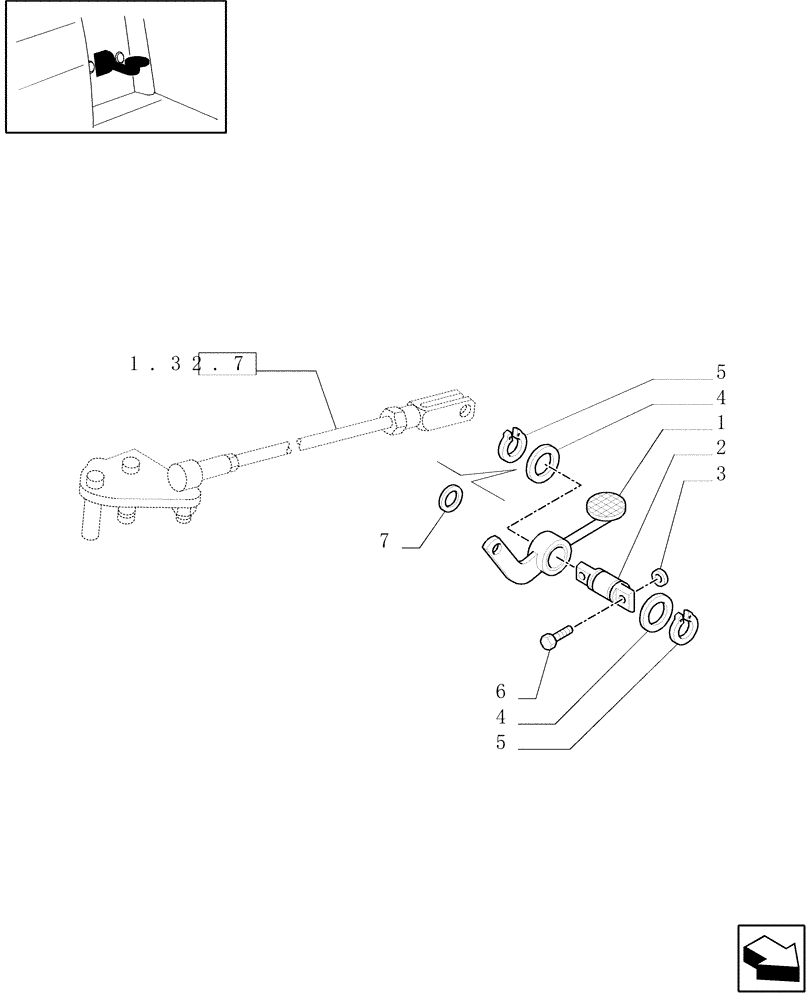

Запчасти Case IH JX1075N (1.92.32) - 2WD DIFFERENTIAL LOCK CONTROL PEDAL (10) - OPERATORS PLATFORM/CAB

1

5188745

PEDAL

1шт.

2

5188383

PIN,21mm x 68mm OD

1шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

4

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

2шт.

5

11066976

SNAP RING,M21, Ext

2шт.

6

14307024

HEX SOC SCREW,M8 x 1.25 x 14mm, Cl 8.8, Full Thd

2шт.

7

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

1шт.
