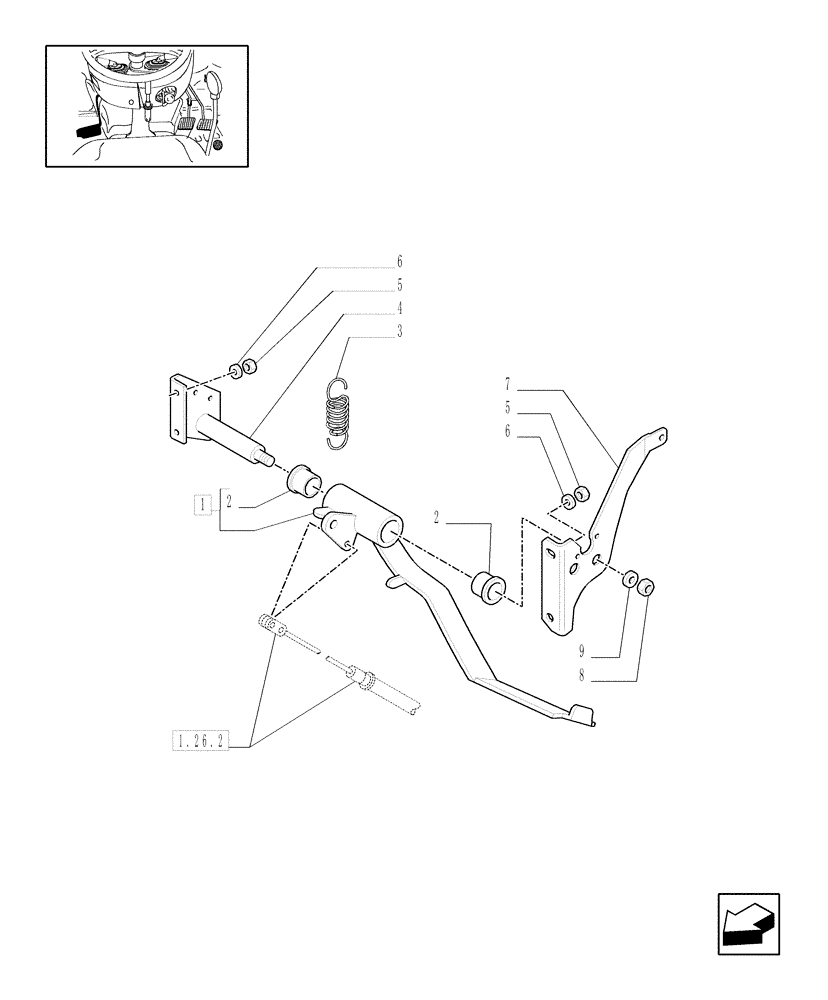

Запчасти Case IH JX1075N (1.92.26[01]) - CLUTCH CONTROL (10) - OPERATORS PLATFORM/CAB

1

5173382

PEDAL

Assy.

1шт.

2

5188075

BUSHING,22mm ID x 26.27mm OD x 26mm L

2шт.

3

5171160

SPRING

1шт.

4

47130713

SUPPORT

RH

1шт.

5

16100821

NUT,M8, Cl 10

4шт.

6

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

7

47130711

SUPPORT

LH

1шт.

8

16101524

NUT,M12 x 1.25, Cl 10

1шт.

9

11190879

BELLEVILLE WASHER,M12 Bolt Size x 30mm OD

1шт.
