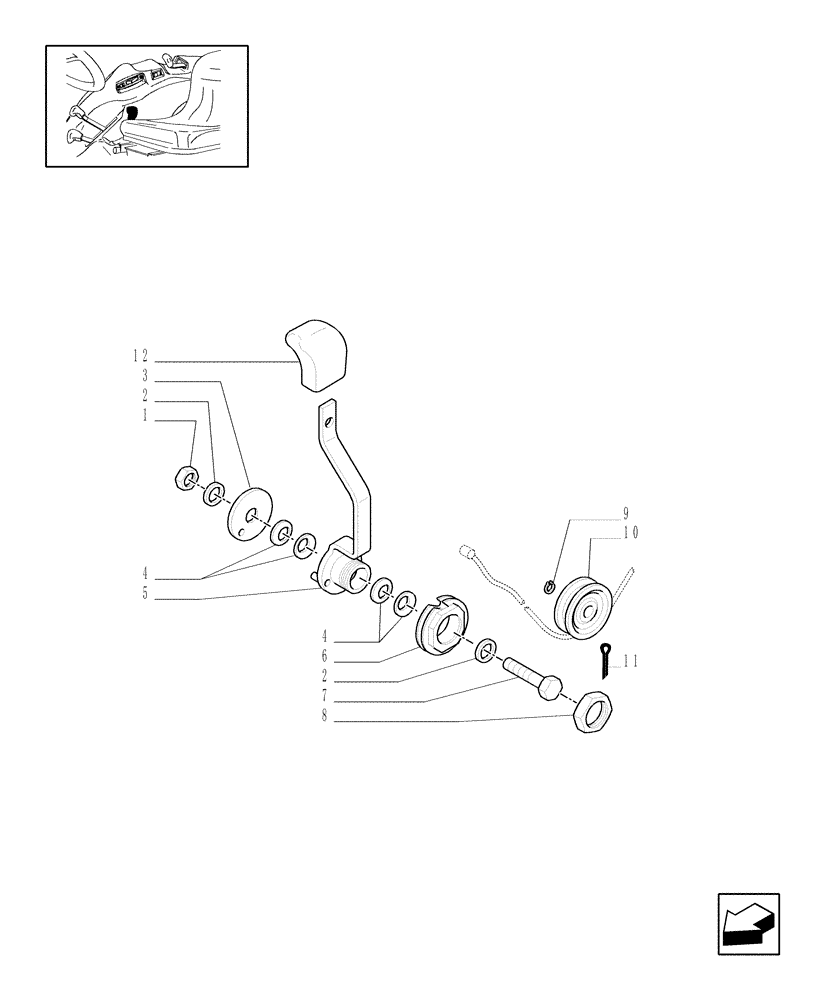

Запчасти Case IH JX1075N (1.92.11) - THROTTLE CONTROL LINKAGE (10) - OPERATORS PLATFORM/CAB

1

10791011

THIN NUT,Thin, M10 x 1.25, Cl 04

1шт.

2

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

2шт.

3

5188073

WASHER,10.5mm ID x 50mm OD x 2mm Thk

1шт.

4

586761

VALVE SPRING,10.2mm ID x 20mm OD x 1.1mm Thk

4шт.

5

5188065

LEVER

L/CAB, JX1070N, JX1075N) JX1060V, JX1070V, JX1075V

1шт.

5

5188272

LEVER

W/CAB, JX1070N, JX1075N

1шт.

6

5188074

PULLEY

1шт.

7

14307724

HEX SOC SCREW,M10 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

8

5196369

NUT

1шт.

9

87016950

SNAP RING,M7, Ext

1шт.

10

5188173

PULLEY

1шт.

11

5188209

COTTER PIN

1шт.

12

5188723

KNOB

1шт.
