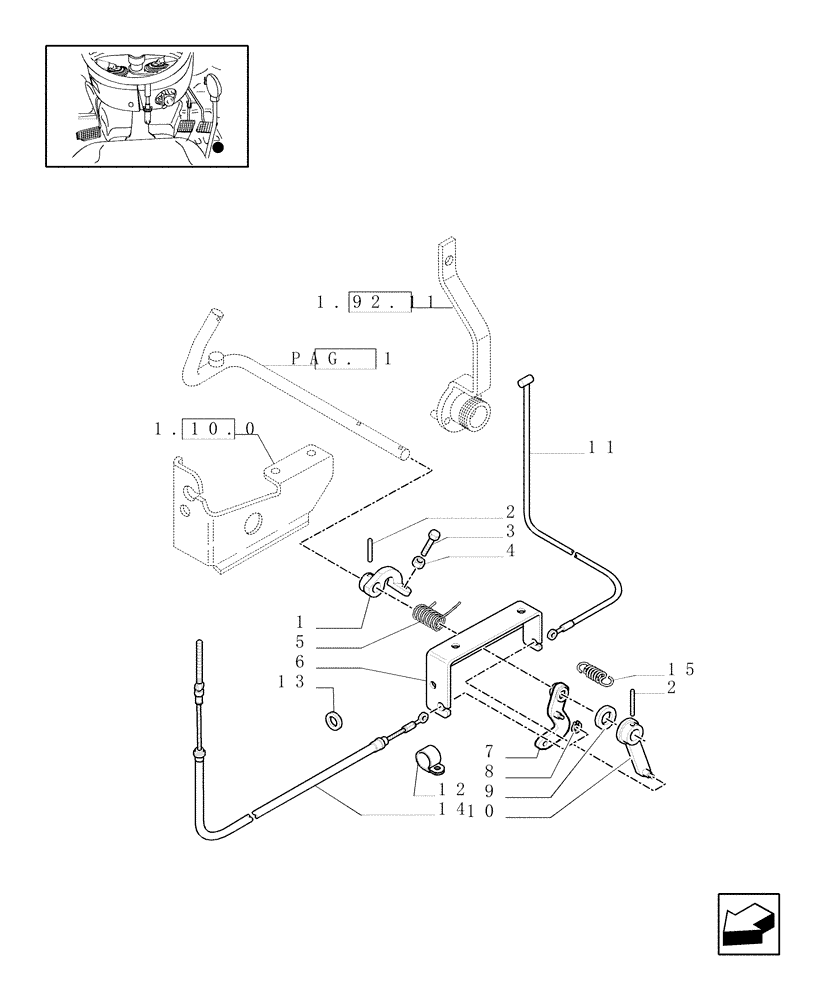

Запчасти Case IH JX1075N (1.92.10[02]) - THROTTLE CONTROL LINKAGE (10) - OPERATORS PLATFORM/CAB

1

5176533

LEVER

1шт.

2

13938070

ROLL PIN,M4 x 24mm OAL, Coiled

2шт.

3

16050624

BOLT,Hex, M6 x 30mm, Cl 8.8, Full Thd

1шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

5

5172853

SPRING

1шт.

6

47136261

SUPPORT

1шт.

7

47123306

LEVER

1шт.

8

11063876

SPRING CLIP,M5 x 4mm

1шт.

9

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

10

5170655

LEVER

1шт.

11

5188227

CABLE,770mm L

1шт.

12

10450390

RETAINER COLLAR,14mm, Coat, 9mm Bolt Hole, P Type

1шт.

13

10397280

INSULATING RING

10x3

1шт.

14

5192952

FLEXIBLE CONTROL

1шт.

15

5188224

SPRING

1шт.
