(1.89.6/02) - (VAR.882) HYDRAULIC RIGHT LIFTING ROD - TIE-ROD, PIPES AND CONNECTIONS

Запчасти Case IH JX1075N (1.89.6/02) - (VAR.882) HYDRAULIC RIGHT LIFTING ROD - TIE-ROD, PIPES AND CONNECTIONS (09) - IMPLEMENT LIFT

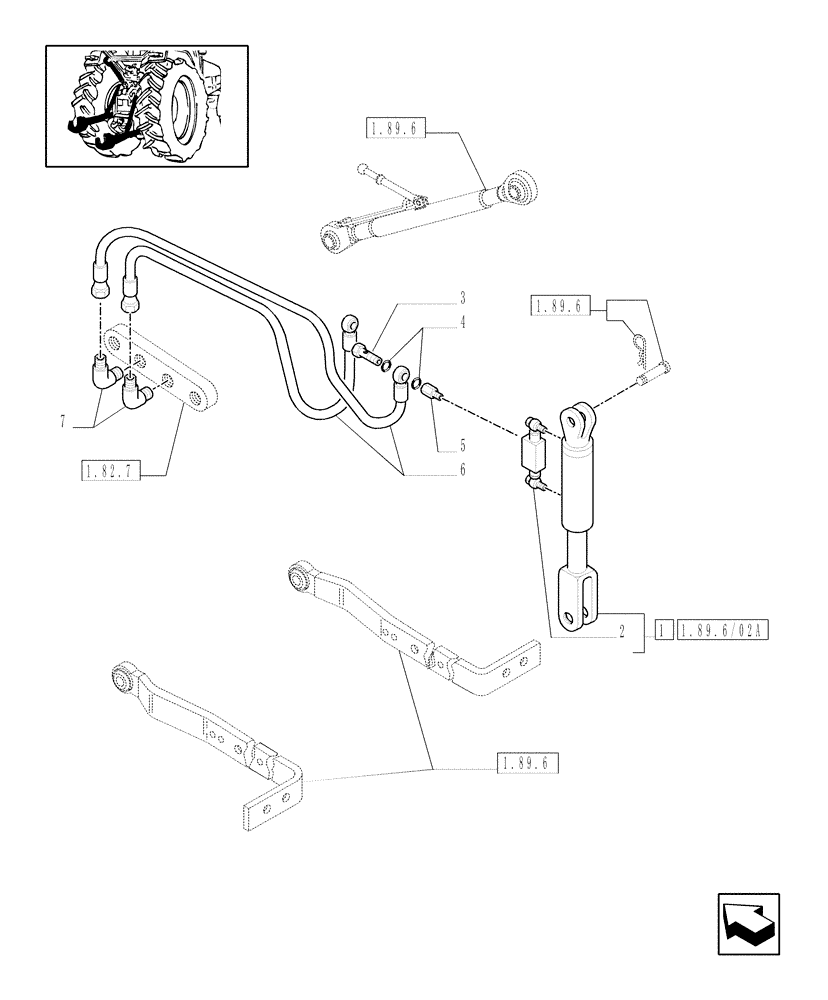

Схема запчастей Case IH JX1075N - (1.89.6/02) - (VAR.882) HYDRAULIC RIGHT LIFTING ROD - TIE-ROD, PIPES AND CONNECTIONS (09) - IMPLEMENT LIFT
7
1.82.7
2
3
1.89.6
5
1.89.6/02a
1.89.6
6
1
4
1.89.6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5193433

LIFT LINK

Assy.

1шт.

2

5194121

HYDRAULIC VALVE

1шт.

3

5179496

BANJO BOLT,Hex, M9 x 39mm

2шт.

4

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

5шт.

5

5179492

PROP,3/8"

1шт.

6

5195810

FLEXIBLE HOSE,6mm ID x 980mm L, SAE 100R1

LH

1шт.

6

5195809

FLEXIBLE HOSE

RH

1шт.

7

5179497

HYD CONNECTOR,9/16-18 UNF

2шт.
