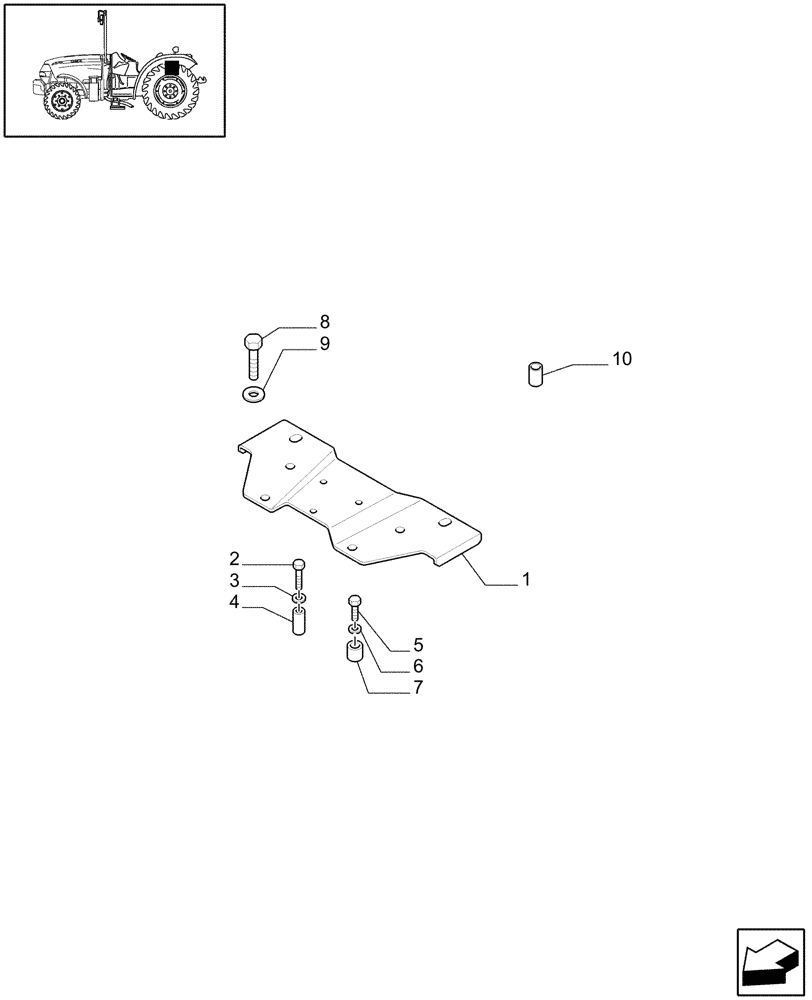

Запчасти Case IH JX1075N (1.87.0/06[01]) - (VAR.101) NOISE REDUCTION PACKAGE MUDGUARDS AND FOOTBOARDS (08) - SHEET METAL

1

5187761

PLATE

1шт.

2

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

4

5187753

SPACER

9 x 20 x 37

2шт.

5

15540824

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

6

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

2шт.

7

5177775

SPACER

14 x 25 x 17

2шт.

8

11124524

BOLT,Hex, M20 x 45, 8.8, Full Thd

4шт.

8

15984624

SCREW,Hex, M18 x 1.5 x 70mm, Cl 8.8

, Serial Range: -HJC032231

4шт.

8

11408524

BOLT,Hex, M18 x 1.5 x 40mm, Cl 8.8

, Start Serial: HJC032232

4шт.

9

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

4шт.

10

5190114

SPACER

JX1060V, JX1070V, JX1075V, Serial Range: -HJC032231

4шт.
