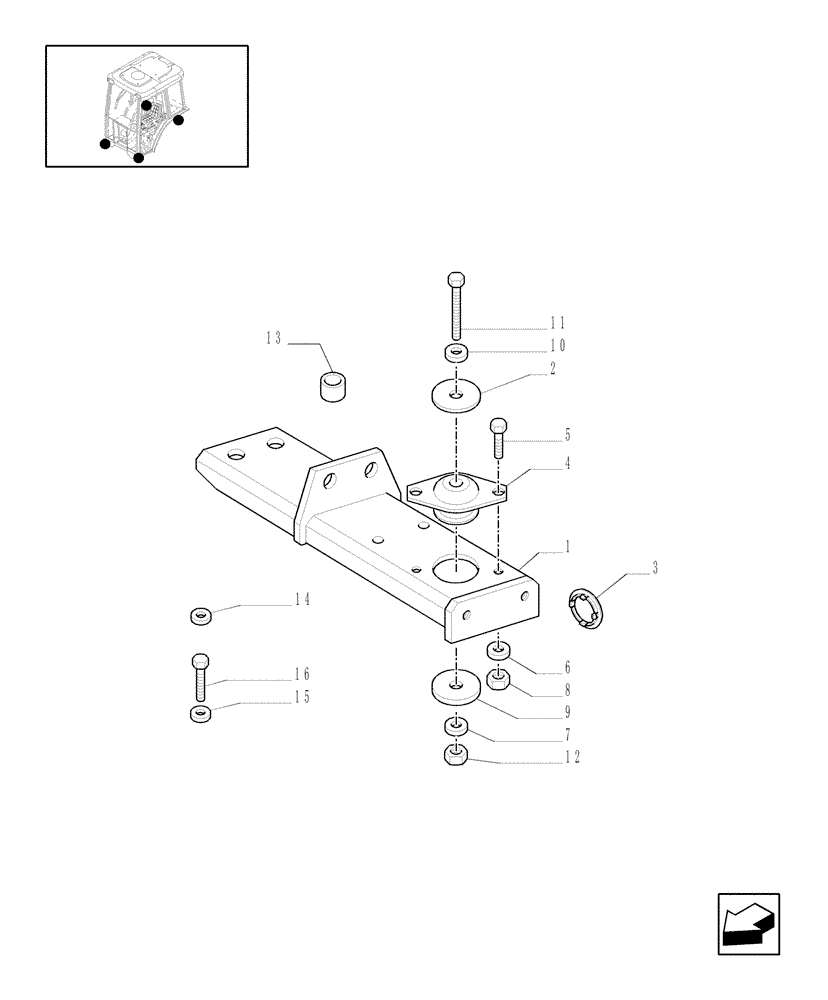

Запчасти Case IH JX1075N (1.87.0/02[02]) - CAB - CAB SUPPORTS (08) - SHEET METAL

1

5183710

BRACKET

RH Front

1шт.

1

5188438

BRACKET

LH Front

1шт.

2

5132013

RING

2шт.

3

5188719

PLUG

2шт.

4

87688301

ISOLATOR,90mm OD x 64mm L

2шт.

5

11124524

BOLT,Hex, M20 x 45, 8.8, Full Thd

4шт.

6

11190774

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD x 2.8mm Thk

4шт.

7

13580124

WASHER,16.4mm ID x 32mm OD x 4mm Thk

2шт.

8

16101524

NUT,M12 x 1.25, Cl 10

4шт.

9

5132012

RING

2шт.

10

11200271

BELLEVILLE WASHER,M16 Bolt Size x 34mm OD x 4.4mm Thk

M16 x 34 x 4.4

2шт.

11

11369634

BOLT,Hex, M16 x 1.5 x 110, 10.9

2шт.

12

12164121

NUT,M16 x 1.5, Cl 10

5шт.

13

5190114

SPACER

, Serial Range: -HJC032231

6шт.

14

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

20x38x4.6

4шт.

15

11191674

BELLEVILLE WASHER,M18 Bolt Size x 36mm OD x 4.2mm Thk

4шт.

16

15984624

SCREW,Hex, M18 x 1.5 x 70mm, Cl 8.8

, Serial Range: -HJC032231

4шт.

16

11408524

BOLT,Hex, M18 x 1.5 x 40mm, Cl 8.8

, Start Serial: HJC032232

4шт.
