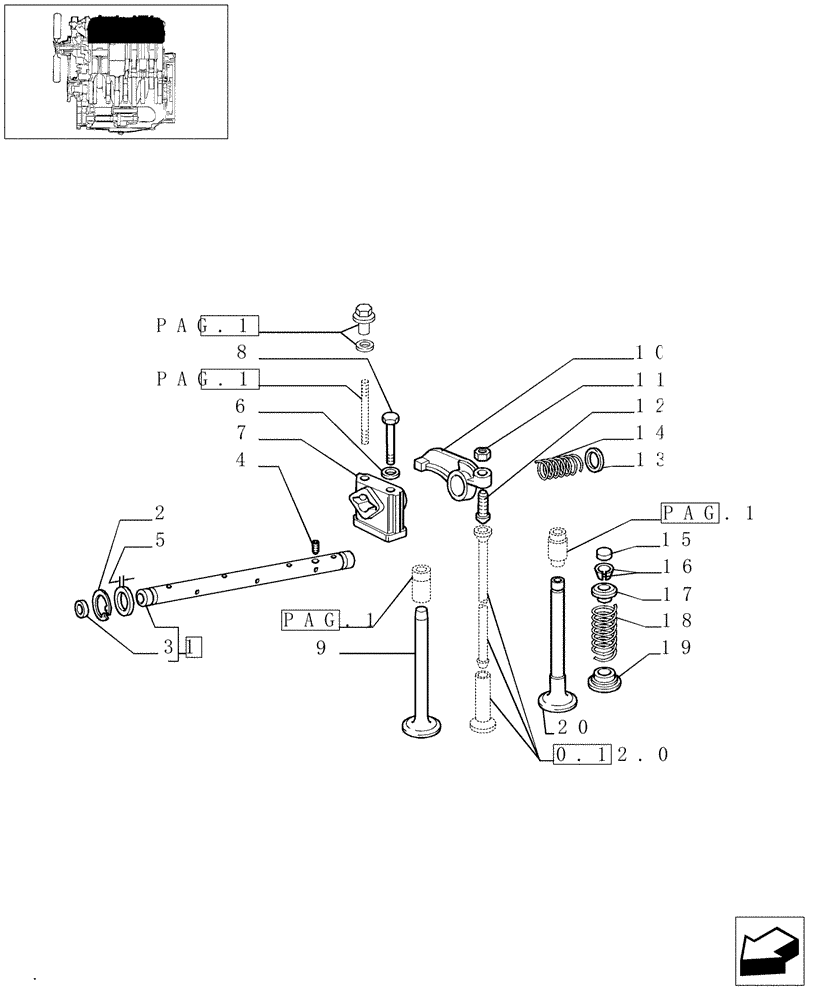

Запчасти Case IH JX1075N (0.06.0/01[02]) - VALVES (01) - ENGINE

1

4682990

SHAFT

1шт.

2

84021874

SNAP RING,M18, Ext

2шт.

3

14328301

PLUG,M12, Tapered

2шт.

4

4846851

SCREW,M6 x 25mm

1шт.

5

4570798

WASHER

0.7 mm

4шт.

5

4570799

WASHER

0.5 mm

4шт.

6

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

3шт.

7

4601295

SUPPORT

3шт.

8

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

3шт.

9

99432717

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

3шт.

10

4848973

ROCKER ARM

6шт.

11

4338920

NUT

6шт.

12

4699783

ADJUSTMENT SCREW

6шт.

13

4639661

THRUST WASHER,18mm ID x 24mm OD x 1mm

4шт.

14

4601296

SPRING,Extension, 22.1mm OD x 59.5mm L

2шт.

15

4838680

CAP

6шт.

16

14196670

ROCKER ARM COTTER

12шт.

17

4780558

CUP

6шт.

18

4812347

SPRING,Extension, 33mm OD x 44.6mm L

6шт.

19

4817424

CUP

6шт.

20

4824417

STD INLET VALVE

STD ENGINE INLET VALVE

3шт.
