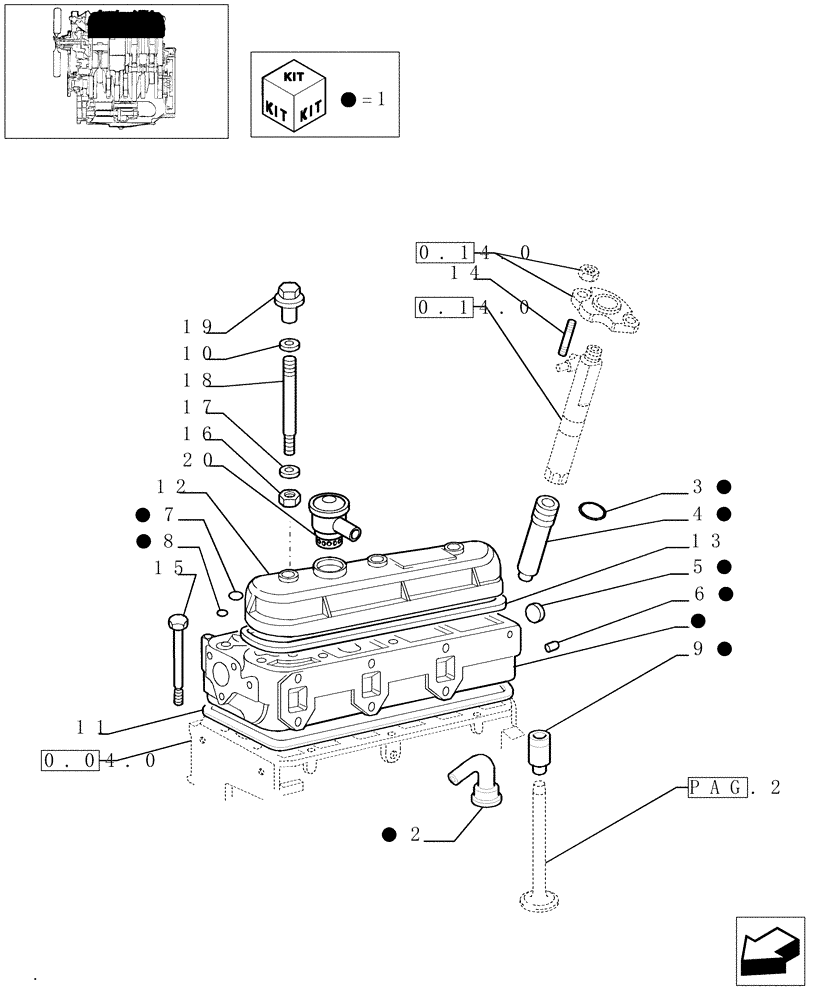

Запчасти Case IH JX1075N (0.06.0/01[01]) - CYLINDER HEAD ASSEMBLY (01) - ENGINE

1

99464908

CYLINDER HEAD

1шт.

2

4818862

HYD TUBE

3шт.

3

14453981

O-RING,0.989" ID x 0.07" Width

6шт.

4

4770859

SLEEVE

3шт.

5

14282970

PLUG,M45, Tapered, Stainless

1шт.

6

99434231

PLUG

M10 x 1.25

1шт.

7

14282470

PLUG,M28, Tapered, Stainless

6шт.

8

14282170

PLUG,M20, Tapered, Stainless

1шт.

9

4802126

VALVE GUIDE

+0.0

6шт.

9

4802127

VALVE GUIDE

+0.2

6шт.

10

98416134

SEALING WASHER,13mm ID x 24mm OD x 1.5mm Thk

3шт.

11

99481361

CYLINDER HEAD GASKET,1.55mm Thk

THK.1.55

1шт.

11

98472011

GASKET,1.35mm Thk

THK.1.35

1шт.

12

99460556

VALVE COVER

1шт.

13

99460554

CYLINDER HEAD GASKET

1шт.

14

500380521

STUD,M5 x 12 x 45mm

6шт.

15

4796457

BOLT,Flng, M12 x 1.25 x 122.5mm

M12X1.25

14шт.

16

43362

NUT,M8 x 1.25, Cl 10

3шт.

17

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

3шт.

18

98458149

STUD,M8 x 88mm

M8 x 1.25 x 76

3шт.

19

98417659

NUT,Hex Flg, M8, 1.25mm Pitch

3шт.

20

504058466

BREATHER

1шт.
