Запчасти Case IH JX1075N (0.04.3[01]) - COVERS & GASKETS (01) - ENGINE

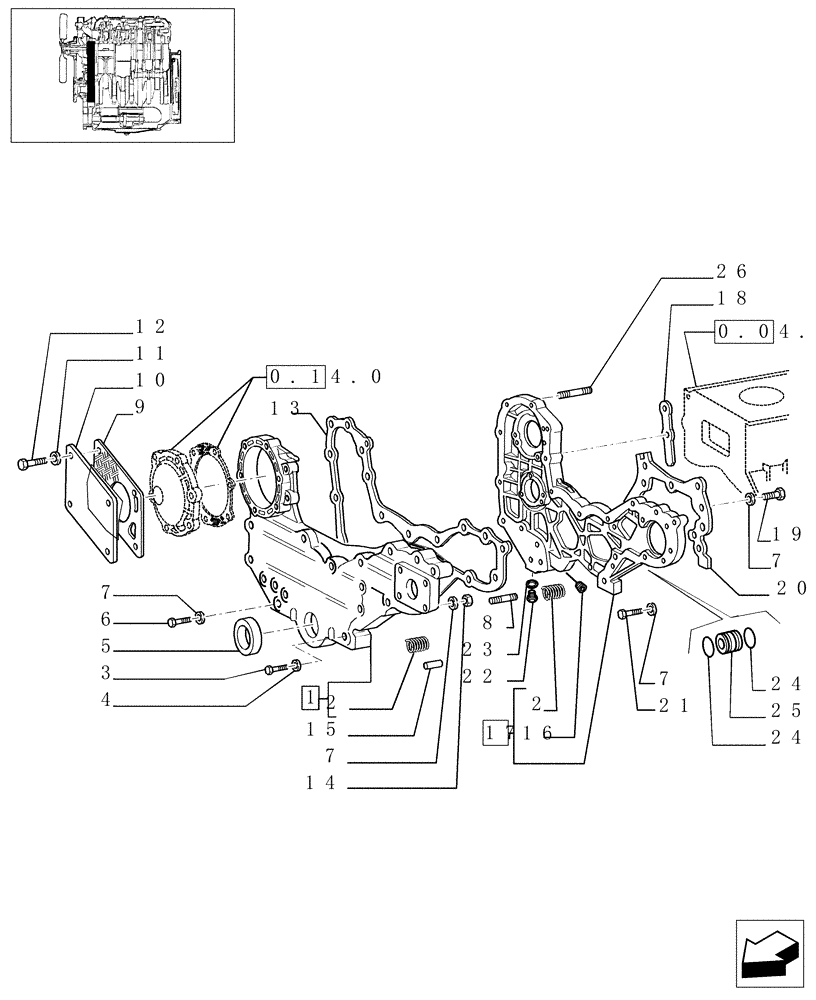

Схема запчастей Case IH JX1075N - (0.04.3[01]) - COVERS & GASKETS (01) - ENGINE
3
0.14.0
8
7
18
5
25
26
4
17
11
6
20
0.04.0
2
16
22
12
13
24
19
21
7
7
2
9
24
23
10
7
1
14
15

Артикул

Название

Примечание

Количество

1

99447808

COVER

1шт.

2

17849970

THREADED INSERT

5шт.

3

16289324

FLANGE BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

M10X70

1шт.

4

14499521

WASHER,10.5mm ID x 18mm OD x 2mm Thk

1шт.

5

504127326

SEAL,42.2mm ID x 65mm OD x 12mm Thk

1шт.

6

15214424

BOLT,Hex, M8 x 95mm, Cl 8.8, Full Thd

7шт.

6

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

5шт.

6

16044621

SCREW,Hex, M8 x 70mm, Cl 8.8

1шт.

6

15214221

BOLT,Hex, M8 x 85mm, Cl 8.8, Full Thd

3шт.

6

16691524

SCREW,M8 x 70mm

M8X70

1шт.

7

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

22шт.

8

500346886

STUD

M8 x 14 x 30

3шт.

9

504092108

GASKET

1шт.

10

500315902

COVER

1шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

12

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

13

99440821

GASKET

1шт.

14

43362

NUT,M8 x 1.25, Cl 10

1шт.

15

10839610

DOWEL,M8 x 12mm

D=8 x 12 mm

2шт.

16

4605220

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

1шт.

17

504070709

HOUSING

1шт.

18

98432469

GASKET,0.8mm Thk

1шт.

19

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

1шт.

20

99440820

GASKET

1шт.

21

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

3шт.

22

4602520

PLUG

M6

1шт.

23

10297760

COPPER WASHER,M6.2 x 12 x 1, Copper

1шт.

24

14456981

O-RING,0.424" ID x 0.103" Width

2шт.

25

504083726

BANJO BOLT

1шт.

26

13546924

STUD

M10X20X50

3шт.

Выбрано товаров: 30
