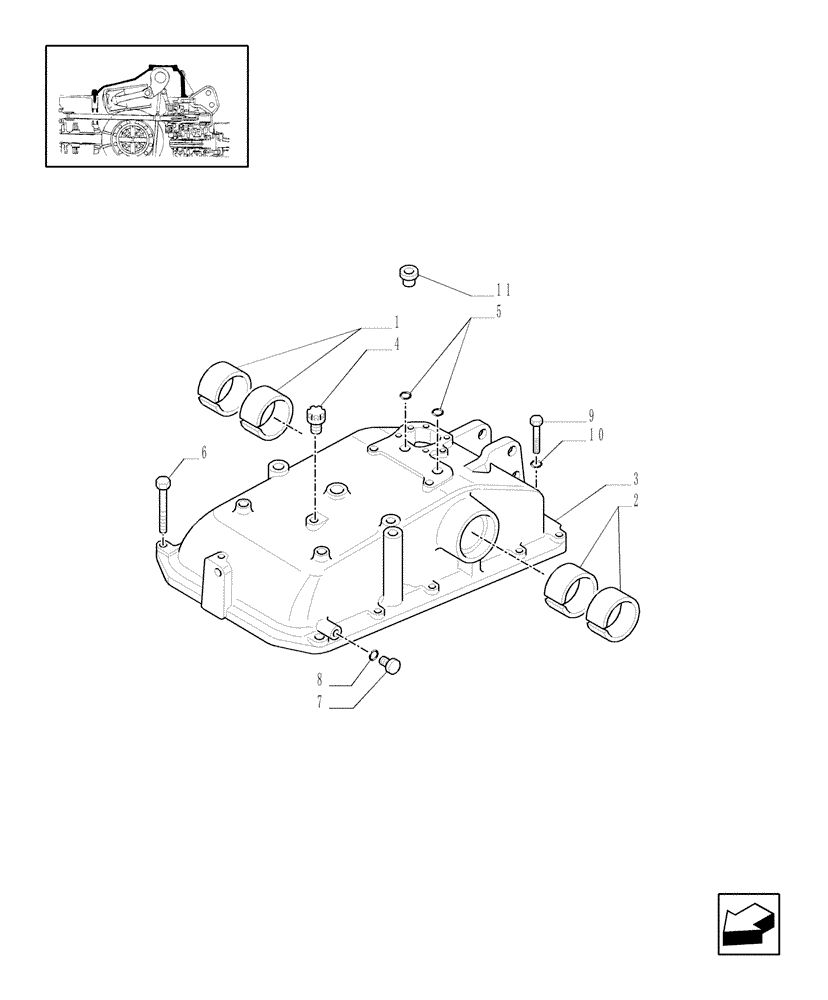

Запчасти Case IH JX1075N (1.82.0) - LIFTER, HOUSING AND COVERS (07) - HYDRAULIC SYSTEM

1

5181871

BUSHING,47.98mm ID x 53.03mm OD x 35mm L

RH

2шт.

2

5181870

BUSHING,55.1mm ID x 60.03mm OD x 35mm L

LH

2шт.

3

5182099

BODY

Incl. Ref. 1.2, Serial Range: -HJC063689

1шт.

3

87346203

BODY

Incl. Ref. 1.2, Start Serial: HJC063690

1шт.

3

87346218

BODY

VAR.486

1шт.

4

89636958

BREATHER

1шт.

5

14457581

O-RING,0.799" ID x 0.103" Width

2шт.

6

15540724

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8

10шт.

6

15541524

SCREW,Hex, M12 x 1.25 x 90mm, Cl 8.8

1шт.

6

15541624

SCREW,Hex, M12 x 1.25 x 100mm, Cl 8.8

, Start Serial: HJC063690

1шт.

7

10273140

PLUG,Hex Skt, M18 x 1.5

1шт.

8

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

1шт.

9

15542521

SCREW,Hex, M12 x 1.25 x 190mm, Cl 8.8

1шт.

10

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

1шт.

11

14328601

PLUG,M18, Tapered

2шт.
