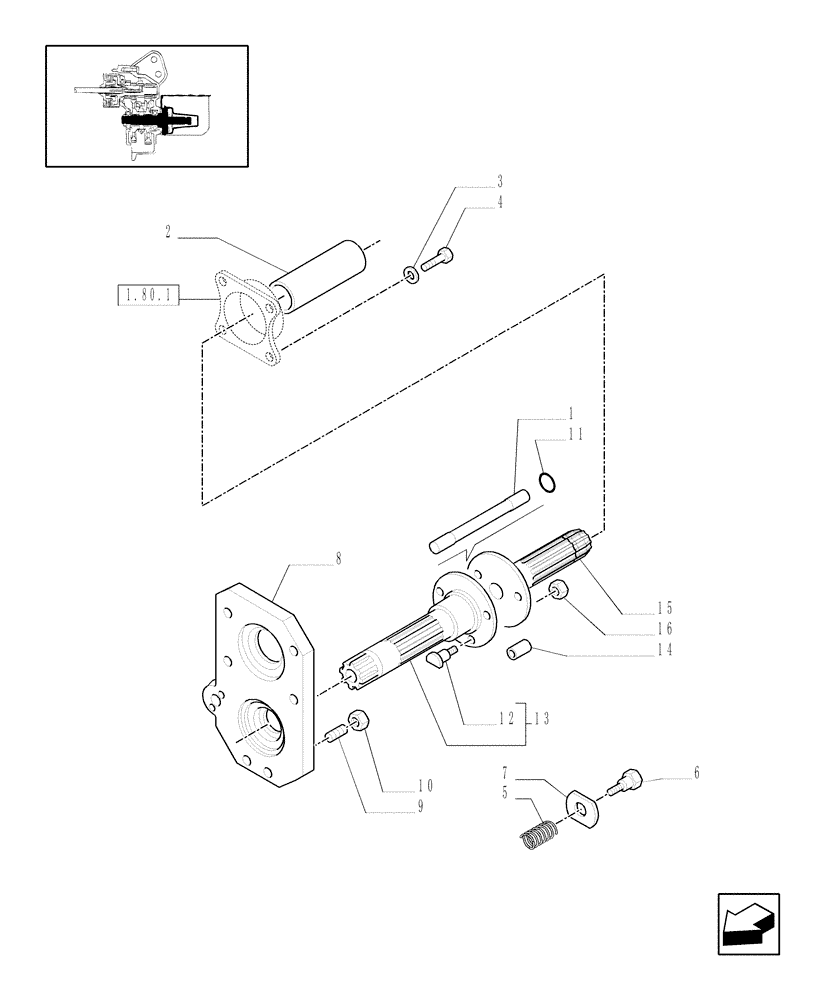

Запчасти Case IH JX1075N (1.80.1/07[02]) - (VAR.959) NA POWER TAKE-OFF (540-1000 RPM) - SHAFTS AND GEARS (07) - HYDRAULIC SYSTEM

1

5180676

PIN,12mm Od x 191.5mm L

1шт.

2

5102349

GUARD

1шт.

3

10569374

LOCK WASHER,M8

4шт.

4

80120228

SCREW

M8x20

4шт.

5

47132279

SPRING,Compression, 33mm OD x 29mm L

1шт.

6

47130774

PIN,13.5mm OD x 22mm L

1шт.

7

47131175

BRAKE DISC,14mm ID x 70mm OD x 4mm Thk

2шт.

8

5187934

COVER

1шт.

9

13543624

STUD,M8 x 1.25 x 46mm L, 22 Thd, Cl 8.8

M8 x 16 x 30

6шт.

10

43362

NUT,M8 x 1.25, Cl 10

6шт.

11

5103230

O-RING,2.62mm Thk x 11.91mm ID

2.62 x 11.91

1шт.

12

44012300

PIN,14mm OD x 37mm L

M12x1.25x37

3шт.

13

5177640

SHAFT

1шт.

14

13919570

ROLL PIN,M12 x 28, Coiled

1шт.

15

5185601

SHAFT,1000 rpm, 21 Teeth

1000 RPM

1шт.

15

5185602

SHAFT,540 rpm, 6 Teeth

540 RPM

1шт.

16

16105021

LOCK NUT,M12 x 1.25, Cl 10

3шт.
