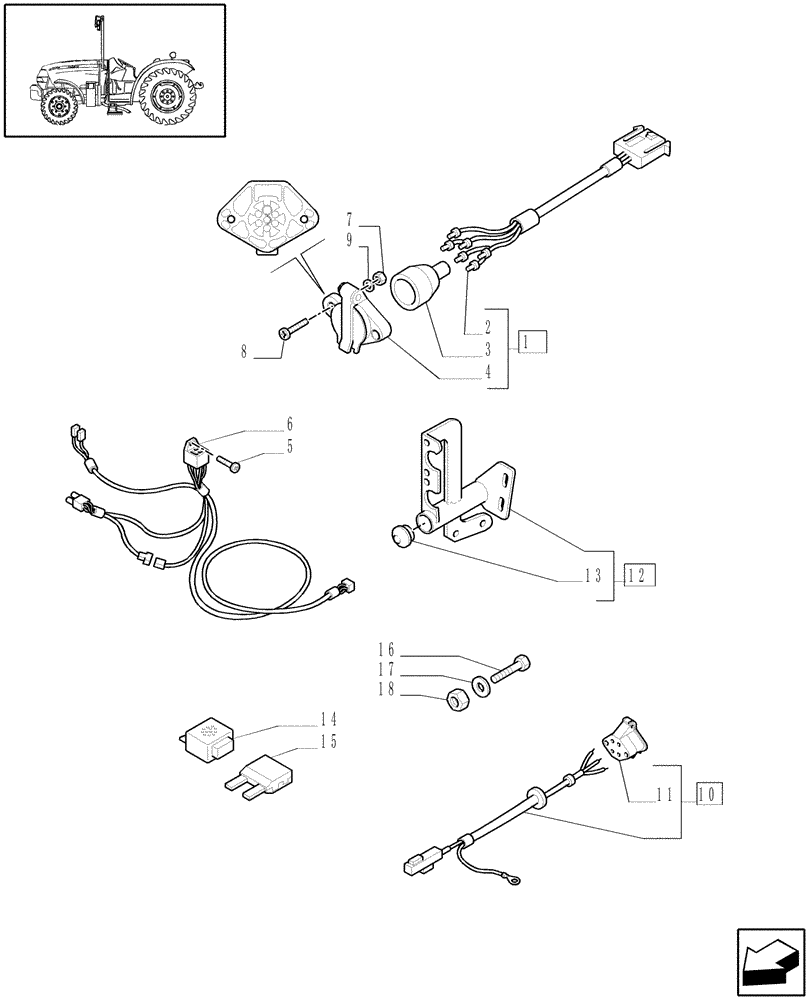

Запчасти Case IH JX1075N (1.75.4/02) - (VAR.007) NA PACKAGE - AUXILIARI CABLES (06) - ELECTRICAL SYSTEMS

1

5196943

WIRE HARNESS

Assy.

1шт.

2

5189716

WIRE HARNESS

1шт.

3

5186014

CAP

1шт.

4

82001021

POWER SOCKET,7 Pins

1шт.

5

15643904

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

1шт.

6

5188081

WIRE HARNESS

Op. Presence

1шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

8

10378914

SCREW,Cross Pan Hd, M8 x 18mm

2шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

10

5195321

ELECTRIC CABLE

40A (L/CAB)

1шт.

10

5195323

ELECTRIC CABLE

4A (W/CAB)

1шт.

11

83982634

POWER SOCKET

1шт.

12

5182215

SUPPORT

1шт.

13

5176369

PLUG,21.2mm OD

1шт.

14

5188605

BUZZER,12V, 0.7A

1шт.

15

5190333

FUSE,40A, Maxi, Orange

40A, Orange

1шт.

16

13272621

SCREW,Cross Pan Hd, M4 x 25mm, Cl 8.8

2шт.

17

89824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

18

10794014

NUT,M4, Cl 8

2шт.
