Запчасти Case IH JX1075N (1.75.4[01]) - AUXILIARY CABLES - L/CAB (06) - ELECTRICAL SYSTEMS

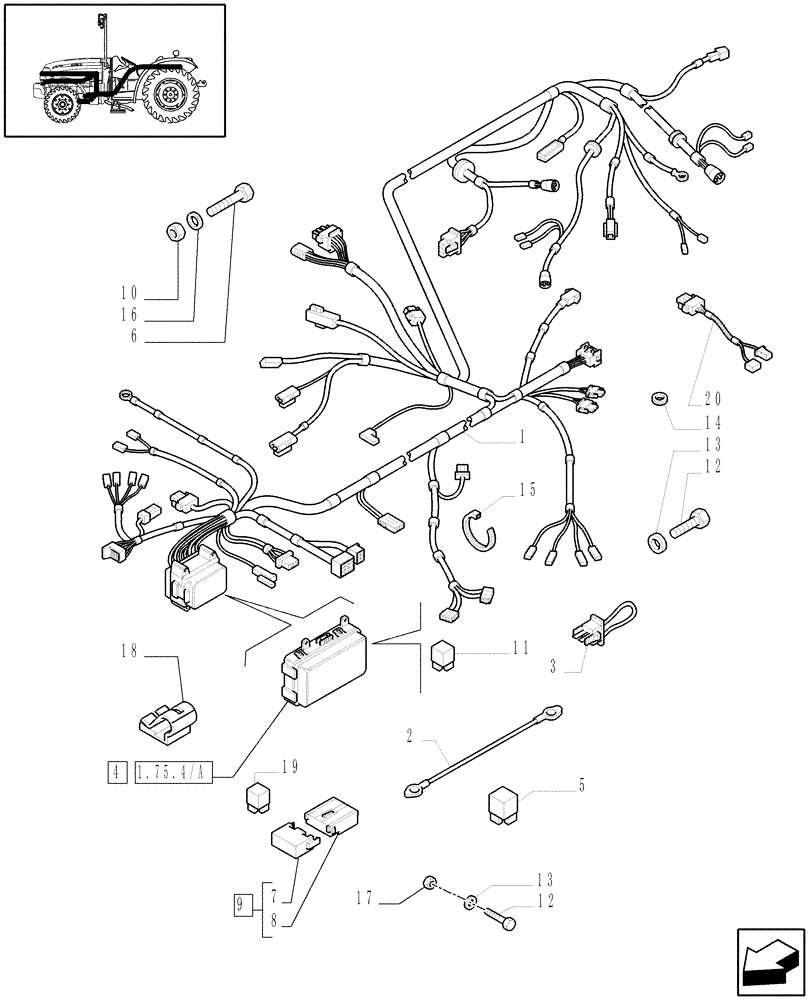

Схема запчастей Case IH JX1075N - (1.75.4[01]) - AUXILIARY CABLES - L/CAB (06) - ELECTRICAL SYSTEMS
20
1
17
4
18
15
13
12
14
16
2
3
5
12
13
1.75.4/a
6
8
11
7
19
10
9

Артикул

Название

Примечание

Количество

1

47130335

ELECTRIC CABLE

Main, 4WD, Serial Range: -HJC049702

1шт.

1

47130331

ELECTRIC CABLE

Main, 2WD, JX1070N, JX1075N, Serial Range: -HJC049702

1шт.

1

47130333

ELECTRIC CABLE

Main, 2WD, JX1060V, JX1070V, JX1075V, Serial Range: -HJC049702

1шт.

Valid also for JX1070N, JX1075N with VAR.297, 2WD

1шт.

1

87312961

ELECTRIC CABLE

Main, 4WD, Serial Range: HJC049703-C5294

1шт.

1

87312944

ELECTRIC CABLE

Main, 2WD, JX1070N, JX1075N, Serial Range: HJC049703-C5294

1шт.

1

87312958

ELECTRIC CABLE

Main, 2WD, JX1060V, JX1070V, JX1075V, Serial Range: HJC049703-C5294

1шт.

Valid also for JX1070N, JX1075N with VAR.297, 2WD

1шт.

1

87398043

ELECTRIC CABLE

Main, 2WD, JX1070N, JX1075N, Start Serial: D5294

1шт.

1

87398045

ELECTRIC CABLE

Main, 4WD, Start Serial: D5294

1шт.

1

87398044

ELECTRIC CABLE

Main, 2WD, JX1060V, JX1070V, JX1075V, Start Serial: D5294

1шт.

2

5191227

ELECTRIC CABLE

Ground, Serial Range: -HJC075427

1шт.

2

87570576

ELECTRIC CABLE

, Start Serial: HJC075428

1шт.

3

5189713

JUMPER

Jumper C18

1шт.

3

47125756

JUMPER

Jumper C21, Serial Range: -C5294

1шт.

3

87371844

ELECTRIC CABLE

Jumper C21, Start Serial: D5294

1шт.

4

5198692

FUSE HOLDER

7 WAY

1шт.

5

5171083

RELAY,12V, 20A, N.O.

12V-20A, Enclosure

1шт.

5

5171084

RELAY,12V, 20A, N.C.

12V-20A, Commutation

1шт.

6

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

7

5173265

COVER

1шт.

8

5173266

FUSE HOLDER

1шт.

9

5176999

COVER

1шт.

10

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

11

10395890

FUSE,5A, Mini, Beige

6шт.

11

87522597

FUSE,10A, Mini, Red

4шт.

11

87524877

FUSE,15A, Mini, Blue

4шт.

11

10401290

FUSE,25 amp Mini

25A

1шт.

12

10390211

SCREW,Sl Pan Hd, M5 x 35mm, Cl 5.8

3шт.

13

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

3шт.

13

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

14

10396780

INSULATING RING

22x1.5

1шт.

15

5143428

CABLE TIE,116mm L

CABLE STRAP

21шт.

16

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

16

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

16

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

DIA=6

1шт.

17

15896414

NUT,M5, Cl 8

1шт.

18

5180912

SPRING CLIP

2WD, JX1070N, JX1075N

1шт.

19

5173264

FUSE,30A, Maxi, Green

50A

1шт.

19

83989947

RELAY,70A

70A

1шт.

20

87319903

ELECTRIC CABLE

4WD, Start Serial: HJC049703

1шт.

Electrohydr. 4WD Extension Harness

1шт.

20

87319904

ELECTRIC CABLE

4WD JX1060V, JX1070V, JX1075V, VAR.933

1шт.

Electrohydr. 4WD Extension Harness W/Steering Sensor

1шт.

Выбрано товаров: 44
