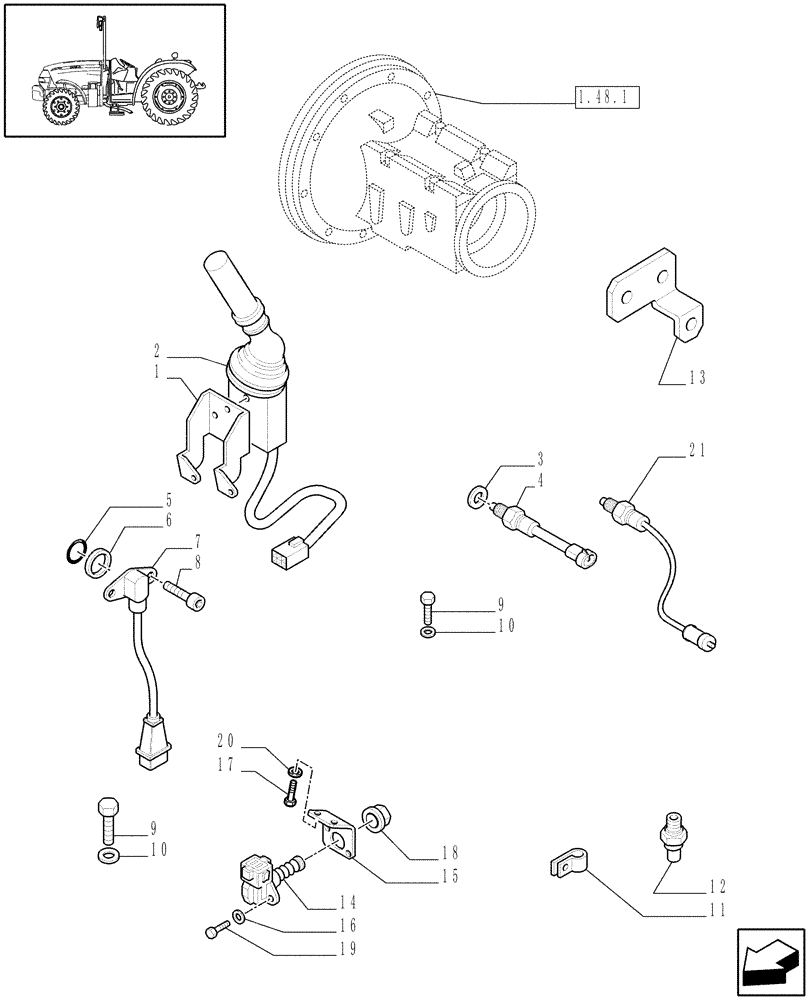

Запчасти Case IH JX1075N (1.75.0/02) - (VAR.297) HI-LO NA - ELECTRIC CONTROLS, POWER-SHUTTLE CONTROL LEVER (06) - ELECTRICAL SYSTEMS

1

5173849

BRACKET

1шт.

2

47132543

CONTROL

P/Shuttle, Serial Range: -C5550

1шт.

2

87577564

CONTROL

Power Shottle, Start Serial: D5550

1шт.

3

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18

2шт.

4

47132568

SWITCH

Grey, Serial Range: -C5561

2шт.

Front synchro and gear lever

1шт.

4

47132569

SWITCH

Green, Serial Range: -C5561

2шт.

Rear synchro and range lever

1шт.

5

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

L/Cab

2шт.

6

5153070

SPACER,15.3mm ID x 17.4mm OD x 4.5mm L

15.3x17.4x4.5, L/CAB, Serial Range: -HJB020795

2шт.

7

5150991

SENSOR

PTO SPEED, Serial Range: -HJB020795

2шт.

7

87564764

SENSOR

Speed, Start Serial: HJB020796

1шт.

8

10977524

BOLT,Hex, M5 x 10mm, Cl 8.8, Full Thd

L/Cab

4шт.

9

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

7шт.

10

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

5шт.

11

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

L/Cab, Serial Range: -C5651

1шт.

11

87575340

ECU

P/Shuttle Control, Start Serial: D5651

1шт.

11

87575340R

REMAN ELECT CONTROL

Remanufactured Electronic Control Unit

1шт.

11

87575340C

CORE-ELECTRONIC CONT

Return Number, ELECTRONIC CONTROL UNIT

1шт.

12

82036587

PRESSURE SWITCH

1шт.

Engine oil pressure

1шт.

13

5192743

RETAINER COLLAR

1шт.

14

87735366

SWITCH

Hand Brake

1шт.

15

5198050

BRACKET

1шт.

16

80322355

WASHER

M4

2шт.

17

13272124

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 8.8, Full Thd

2шт.

18

5198051

NUT

1шт.

19

13271924

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 8.8, Full Thd

2шт.

20

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

21

87585979

SWITCH

Grey, Start Serial: D5561

1шт.

Front syncro and gear lever

1шт.

21

87585980

SWITCH

Green, Start Serial: D5561

1шт.

Rear syncro and range lever

1шт.
