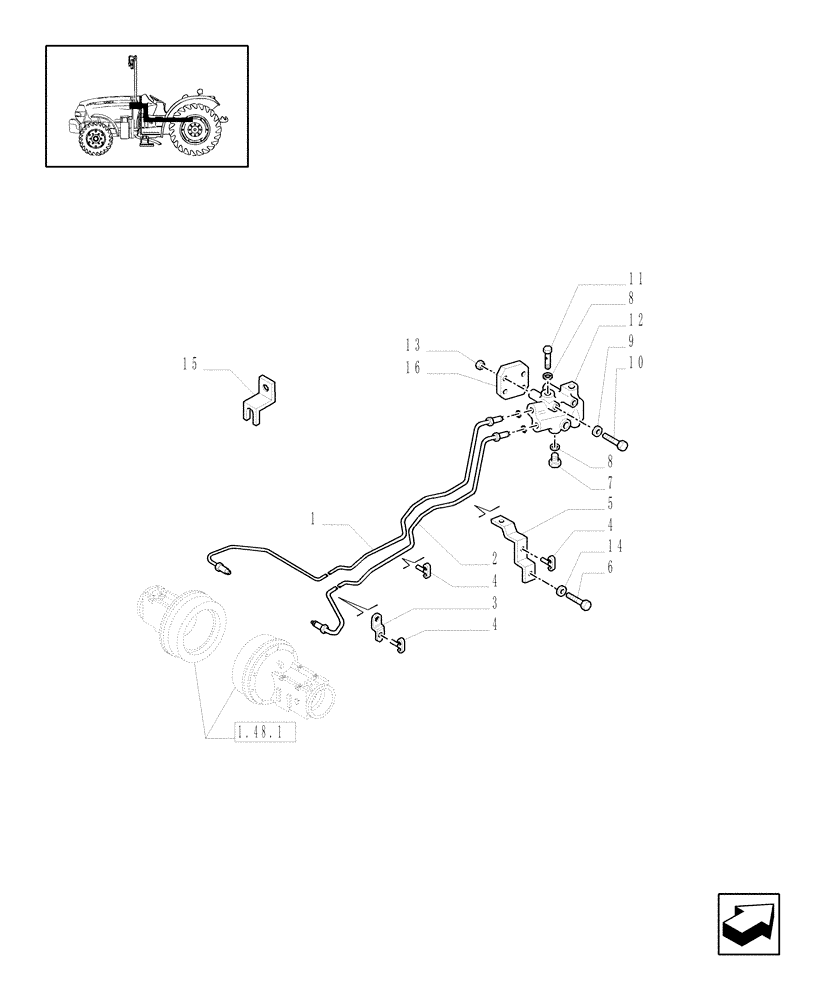

Запчасти Case IH JX1075N (1.68.5) - BRAKE PIPING (05) - REAR AXLE

1

47125945

RIGID TUBE

LH

1шт.

2

47125947

RIGID TUBE

RH

1шт.

3

47125309

BRACKET

Rar

1шт.

4

14575380

CLIP,4.8mm ID

2-4,7

7шт.

5

47125302

BRACKET

Center

1шт.

6

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

7

5102705

PLUG,Hex, 1/8-27

1/8"-27, GAS - 2WD

1шт.

7

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

8

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18 2WD

7шт.

9

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

2шт.

10

16044524

SCREW,Hex, M8 x 1.25 x 65mm, Cl 8.8

2шт.

10

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

11

10185011

BANJO BOLT,M12 x 1.25 x 23mm

2шт.

12

5177861

BLOCK

1шт.

13

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

14

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

15

5120229

PLATE

1шт.

16

5187887

PLATE

1шт.
