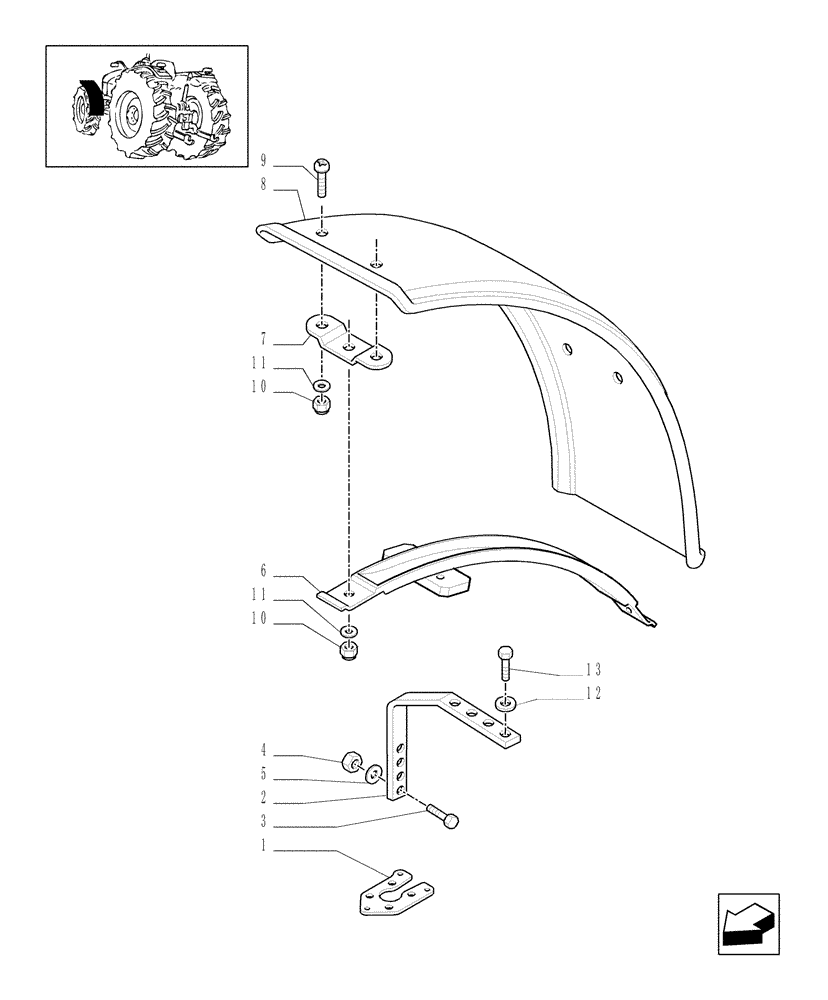

Запчасти Case IH JX1075N (1.43.0/02[01]) - (VAR495) 4WD WIDENED FRONT FENDERS (04) - FRONT AXLE & STEERING

1

47137915

BRACKET

2шт.

2

47137891

SUPPORT

2шт.

3

11307031

BOLT,Hex, M10 x 1.25 x 40mm, Cl 10.9

4шт.

4

12574511

LOCK NUT,M10 x 1.25, Cl 8

4шт.

5

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

6

47137890

SUPPORT

2шт.

7

47137894

PLATE

2шт.

8

5179784

FRONT FENDER

2шт.

9

82021059

BOLT,Hex, M10 x 1.25 x 31mm

12шт.

10

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

6шт.

11

12626204

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

12

14496724

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

13

15542724

SCREW,Hex, M12 x 1.25 x 28mm

M12x1.25x28

4шт.
