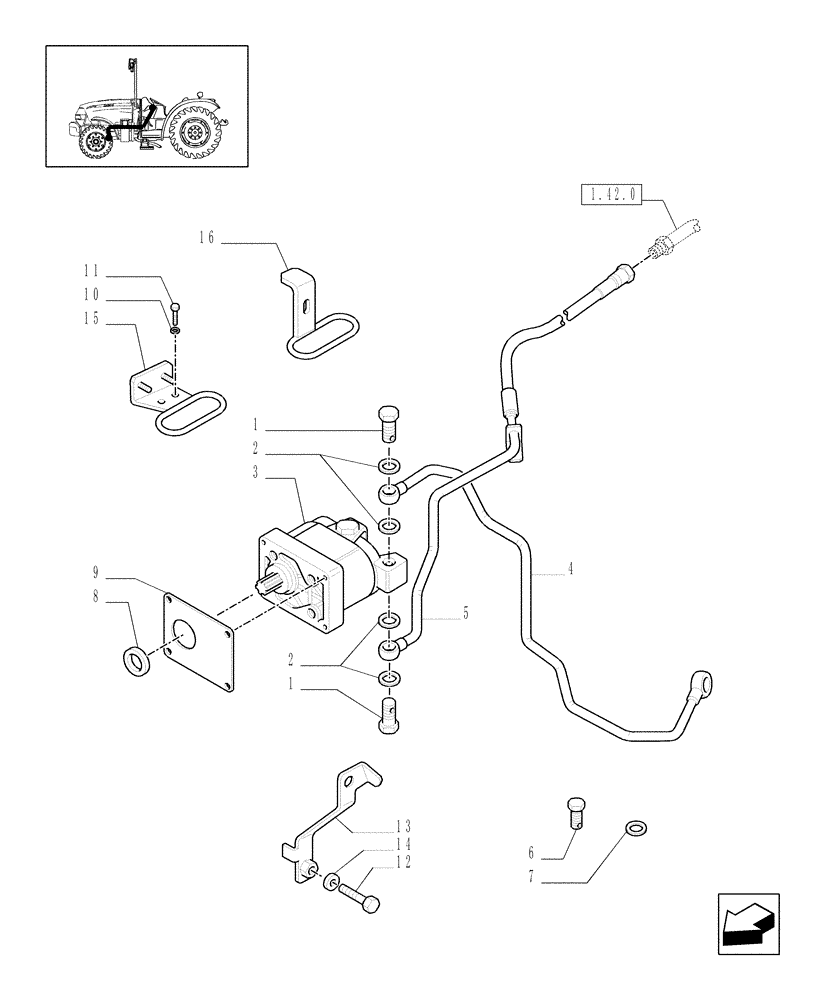

Запчасти Case IH JX1075N (1.42.0/01) - (VAR.271) HI-LO - SERVO-ASSISTED STEERING HYDRAULIC SYSTEM, OIL PUMP AND PIPES (04) - FRONT AXLE & STEERING

1

5184345

BANJO BOLT,M18 x 1.5 x 34mm

2шт.

2

5186176

SEALING WASHER,15.80mm ID x 26.92mm OD x 1.50mm, Steel, Zinc

7шт.

3

5189830

ENGINE OIL PUMP

Assy.

1шт.

4

5197073

RIGID TUBE

1шт.

5

5191819

RIGID TUBE

1шт.

6

10184417

BANJO BOLT,M16 x 1.5 x 31mm

1шт.

6

44909408

BANJO BOLT

M22

1шт.

7

4858609

WASHER,Brass

16x22

2шт.

7

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

8

5118568

CENTERING RING

Centering

1шт.

9

5186310

SEAL

1шт.

10

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

10

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

2шт.

11

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

JX1060V, JX1070V, JX1075V

1шт.

11

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

JX1060V, JX1070V, JX1075V

2шт.

12

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

JX1060V, JX1070V, JX1075V

2шт.

13

47128333

BRACKET

JX1060V, JX1070V, JX1075V

1шт.

14

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

JX1060V, JX1070V, JX1075V

2шт.

15

5190628

BRACKET

JX1060V, JX1070V, JX1075V

1шт.

16

5189544

RING

JX1060V, JX1070V, JX1075V

1шт.
