(1.41.0/ A) - 2WD FRONT AXLE - HYDRAULIC STEERING CYLINDER - BREAKDOWN

Запчасти Case IH JX1075N (1.41.0/ A) - 2WD FRONT AXLE - HYDRAULIC STEERING CYLINDER - BREAKDOWN (04) - FRONT AXLE & STEERING

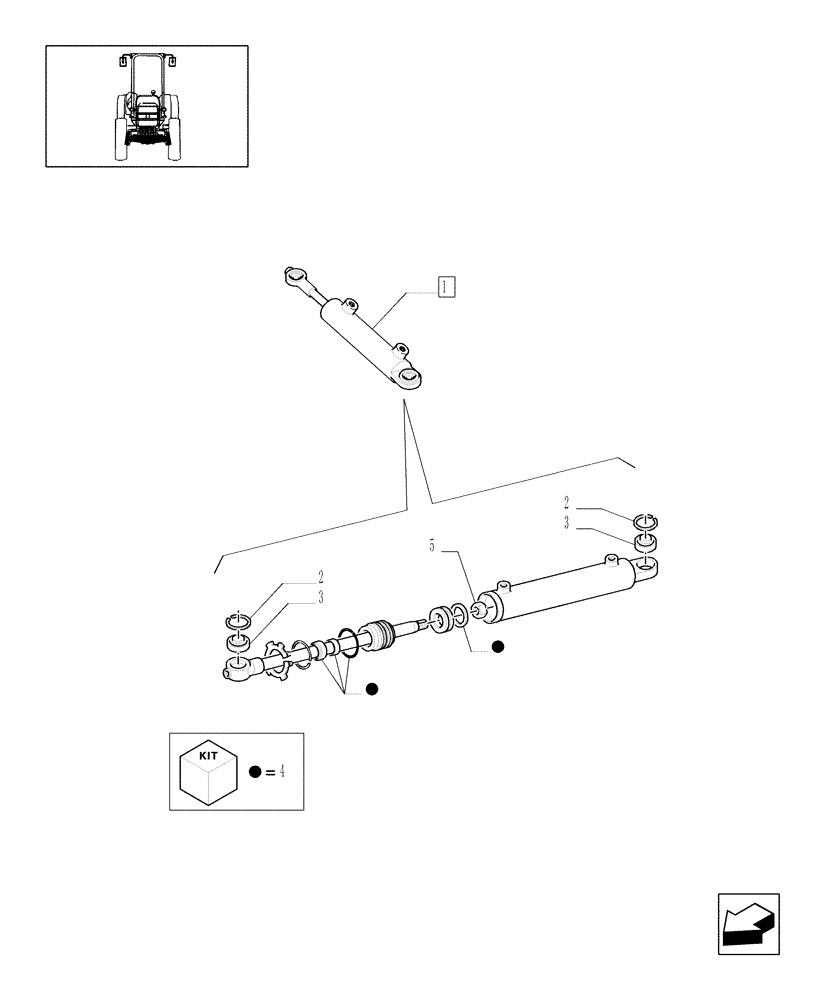

Схема запчастей Case IH JX1075N - (1.41.0/ A) - 2WD FRONT AXLE - HYDRAULIC STEERING CYLINDER - BREAKDOWN (04) - FRONT AXLE & STEERING
4
5
2
3
1
2
4
4
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5188497

SERVO STEERING CYL

Assy., JX1060V, JX1070V, JX1075V

1шт.

1

47135592

HYDRAULIC CYLINDER,Double Acting, 22mm Rod, 189mm Stroke

Assy., JX1070N, JX1075N

1шт.

2

5190903

LOCKING RING

1шт.

3

5190901

BUSHING

1шт.

4

5190591

SEAL KIT

1шт.

5

15504021

NUT,M16 x 1.5

1шт.

Выбрано товаров: 6
