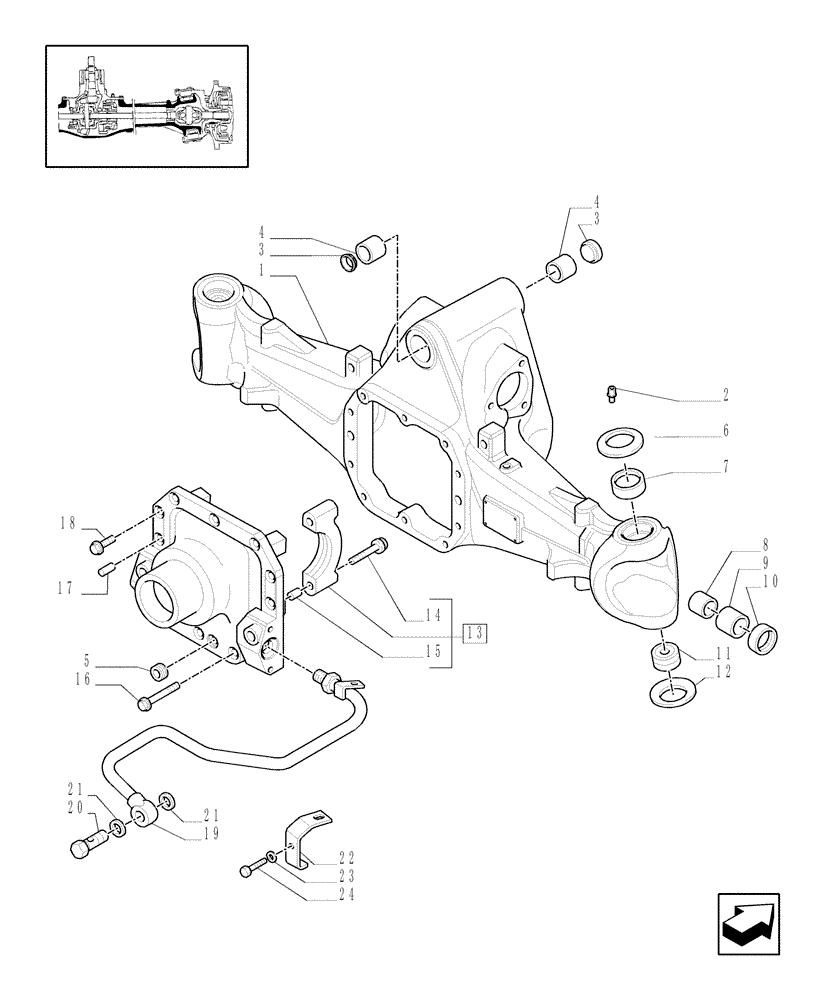

Запчасти Case IH JX1075N (1.40.1/01) - 4WD FRONT AXLE - HOUSING (04) - FRONT AXLE & STEERING

1

87313814

FINAL DRIVE HOUSING

1шт.

1

48168899

Housing Axle Kit

HOUSING

1шт.

2

5194153

BREATHER,M10 x 1

1шт.

3

5194154

PLUG

2шт.

4

87310766

BUSHING

2шт.

5

5194156

PLUG

M24x1.5

2шт.

6

5194157

BELLEVILLE WASHER

2шт.

7

87310767

BUSHING

2шт.

8

5194160

BUSHING,30.05mm ID x 34.12mm OD x 30mm L

2шт.

9

5194161

BUSHING

2шт.

10

85824343

OIL SEAL,30mm ID x 44mm OD x 14mm Thk

2шт.

11

5194163

SPHERICAL BEARING

2шт.

12

5194164

BELLEVILLE WASHER,43mm ID x 61mm OD x 1.669mm Thk

2шт.

13

5194165

SUPPORT

1шт.

14

5194166

BOLT

4шт.

15

47109136

BUSHING

4шт.

16

15541331

BOLT,Hex, M12 x 1.25 x 75mm, Cl 10.9

5шт.

17

5194168

ROLL PIN,M15 x 35 L

2шт.

18

5194169

BOLT,Hex Flg, M12 x 33, 12.9

5шт.

19

47137835

RIGID TUBE

Diff. Lock

1шт.

20

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14x1.5

1шт.

21

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

14.86x22.23x2

2шт.

22

47137850

BRACKET

1шт.

23

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

1шт.

24

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.
