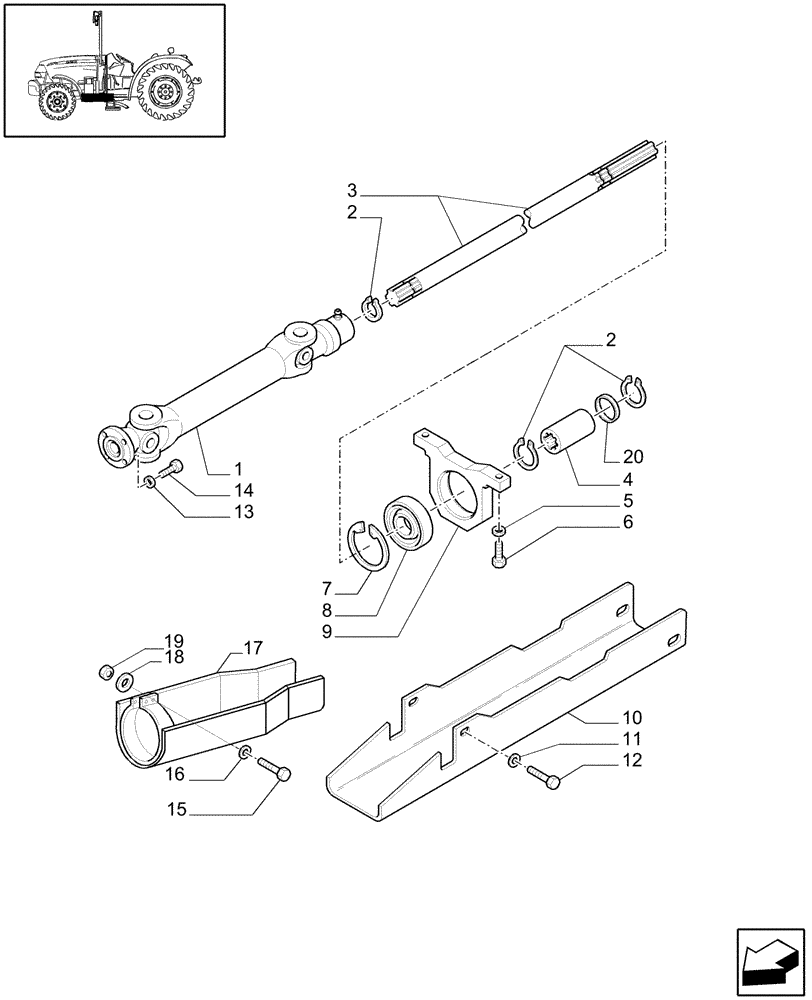

Запчасти Case IH JX1075N (1.38.5) - 4WD PROPELLER SHAFT (04) - FRONT AXLE & STEERING

1

5185849

SHAFT

1шт.

2

11067776

SNAP RING,M29, Ext

4шт.

3

5186200

SHAFT,30mm OD x 467mm L, 10/22T

1шт.

4

5199243

SPLINED COUPLING

1шт.

5

11197979

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

6

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

7

11061576

SNAP RING,M72, Int

DIA=72

2шт.

8

28043310

BALL BEARING,30mm ID x 72mm OD x 19mm Thk

1шт.

9

5186126

SUPPORT

1шт.

10

5194894

SHIELD

1шт.

11

11197874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 2.2mm Thk

4шт.

12

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

12

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

4шт.

13

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

14

14306431

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

15

10902524

SCREW,Hex, M6 x 22mm, Cl 8.8

2шт.

16

14496404

WASHER,M6 x 12 x 2 Thk

2шт.

17

5170550

SHIELD

1шт.

18

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

19

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

20

4997301

SHIM,29mm ID x 40mm OD x 2.2mm Thk

1шт.

20

4997302

SHIM,29mm ID x 40mm OD x 2.5mm Thk

1шт.

20

4997303

SHIM,29mm ID x 40mm OD x 2.8mm Thk

1шт.

20

4997304

SHIM,29.6mm ID x 40mm OD x 3mm Thk

1шт.

20

4997305

SHIM,29.6mm ID x 40mm OD x 3.3mm Thk

1шт.

20

4997306

SHIM,29.6mm ID x 40mm OD x 3.7mm Thk

1шт.

20

4997307

SHIM,29.6mm ID x 40mm OD x 4mm Thk

1шт.

20

4997308

SHIM,29.6mm ID x 40mm OD x 4.3mm Thk

1шт.

20

5158051

SHIM,29.6mm ID x 40mm OD x 1.5mm Thk

1шт.

20

5158052

SHIM,29.6mm ID x 40mm OD x 1.9mm Thk

1шт.
