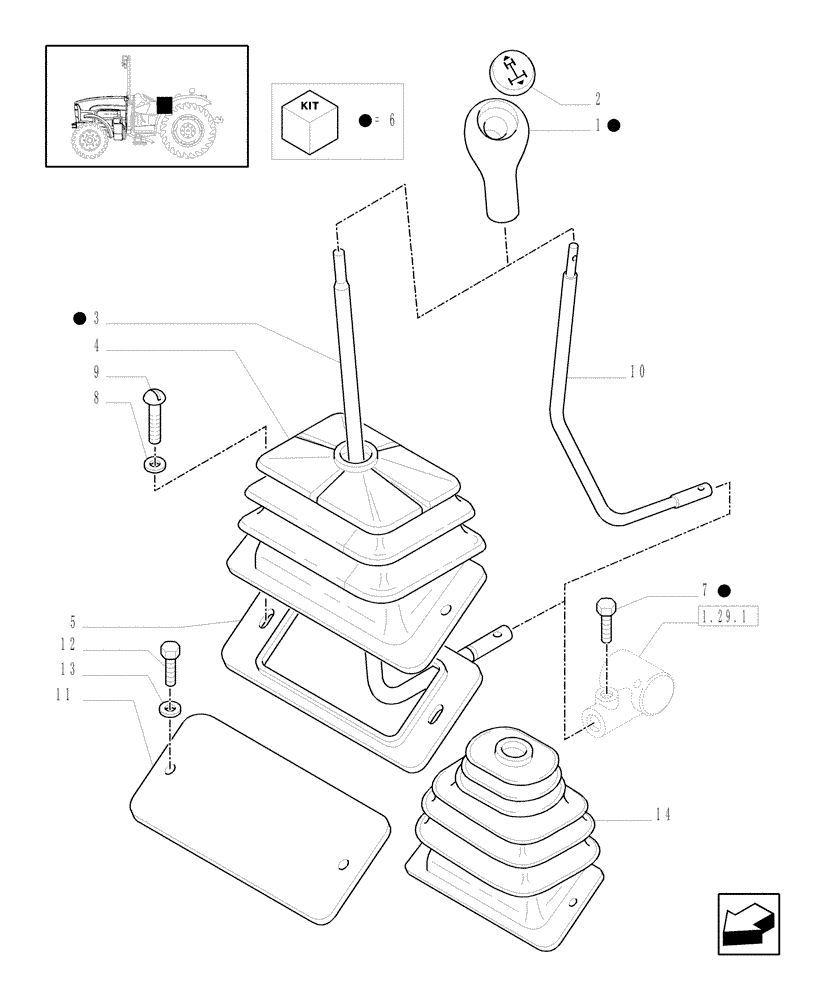

Запчасти Case IH JX1075N (1.34.2) - REVERSER CONTROL (04) - FRONT AXLE & STEERING

1

47056480

KNOB

1шт.

2

47056545

IDEOGRAM

1шт.

2

47056781

IDEOGRAM

VAR.007, JX1070N, JX1075N

1шт.

3

5188058

LEVER

JX1060V, JX1070V, JX1075V W/CAB

1шт.

3

5188993

LEVER

JX1070N, JX1075N W/CAB

1шт.

4

5188425

BELLOWS

, Serial Range: -HJC066472

1шт.

5

5188429

CAPPING

L=4

1шт.

5

5190510

FRAME

L=7

1шт.

6

47129638

LEVER

JX1070N, JX1075N W/CAB

1шт.

6

47129651

LEVER

JX1060V, JX1070V, JX1075V W/CAB

1шт.

7

44013453

SCREW,Hex, M12 x 1.25 x 33mm

M12x28

1шт.

8

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

9

13283714

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd, Cone Pt

2шт.

10

47129635

LEVER

Incl. 1,2,7, L/CAB

1шт.

11

5195262

PLATE

VAR.271-297

1шт.

12

13283714

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd, Cone Pt

VAR.271-297

2шт.

13

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

VAR. 271-297

2шт.

14

87528777

BELLOWS

, Start Serial: HJC066473

1шт.
