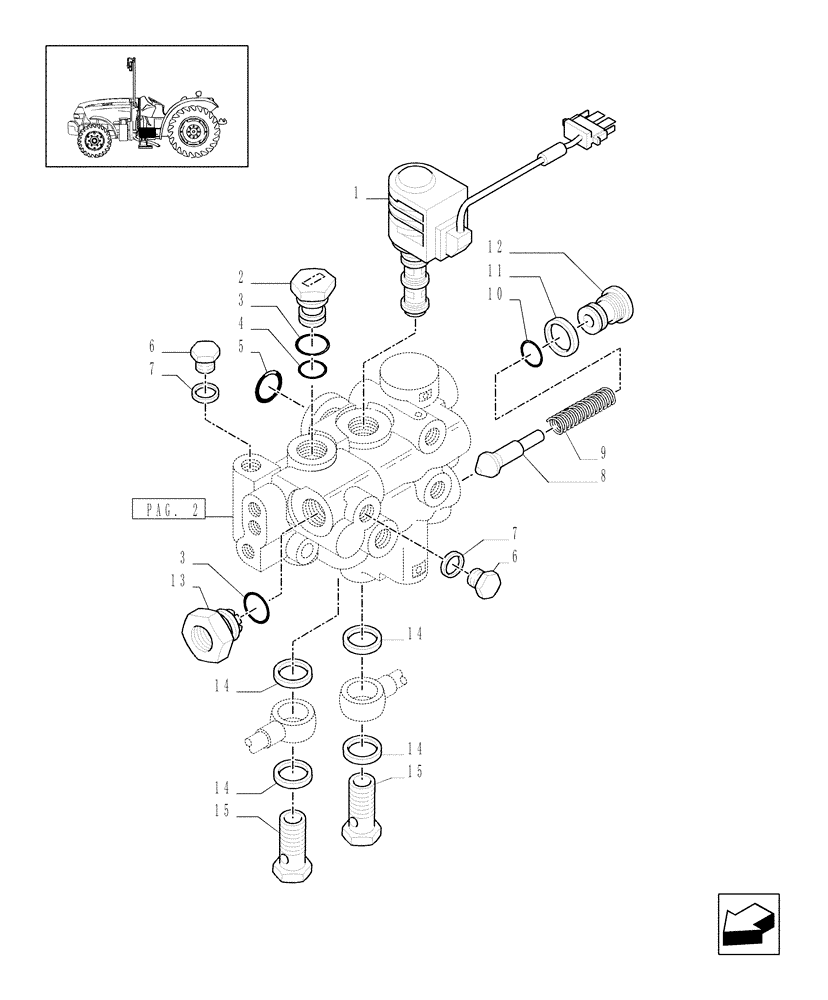

Запчасти Case IH JX1075N (1.33.2/01[01]) - (VAR.271) HI-LO - CLUTCH ENGAGEMENT (2WD), PLUGS AND SOLENOID VALVE (04) - FRONT AXLE & STEERING

1

5193928

HYDRAULIC VALVE

Diff. Lock, W/Diode

1шт.

2

5154967

PLUG,Hex R0.2

1шт.

3

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

4

89827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

5

5135740

O-RING,0.924" ID x 1.13" OD x 0.103"

1шт.

6

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

2шт.

7

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

12x18

2шт.

7

10260960

SEALING WASHER,M10.2 x 14 x 1.5

1шт.

8

5176227

PLUNGER,5.5mm ID x 15mm OD x 43mm L

1шт.

9

5114402

SPRING,Compression, 11mm OD x 35.5mm L

1шт.

10

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

11

98429280

SEAL,20.3mm ID x 26mm OD x 1.5mm Thk

20x26

1шт.

12

5168332

PLUG,M20 x 1.5

1шт.

13

5173444

HYD CONNECTOR,M18/22 x 1.5 x 37mm L

1шт.

14

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

4шт.

15

10300811

PLUG,M18 x 1.5 x 14, Cl5.8

2шт.
