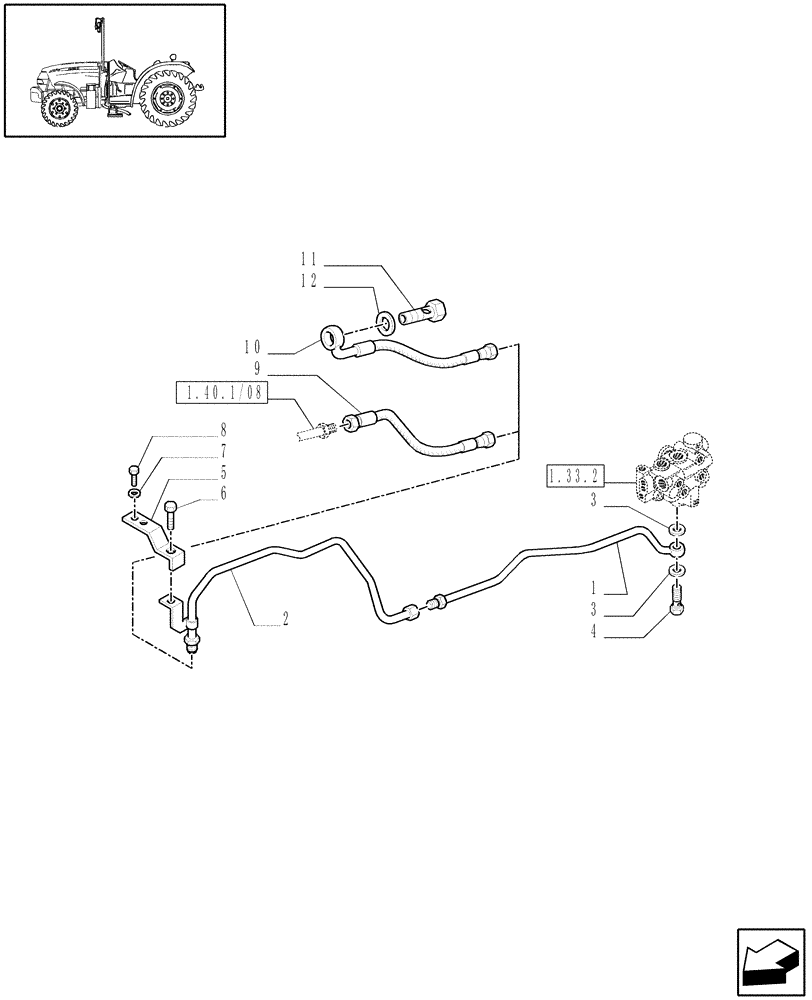

Запчасти Case IH JX1075N (1.32.8) - 4WD HYDRAULIC DIFF. LOCK CONTROL - FRONT AXLE (03) - TRANSMISSION

1

5190137

RIGID TUBE

Rear

1шт.

2

5186308

RIGID TUBE

Front

1шт.

3

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

2шт.

4

5173680

BANJO BOLT,Pipe, M18 x 1.5 x 56mm

1шт.

5

5186309

BRACKET

1шт.

6

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

7

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

8

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

9

5191081

HYDRAULIC HOSE,8.00 mm ID x 400.00 mm, SAE 100R1AT

JX1070N, JX1075N

1шт.

10

5189840

FLEXIBLE HOSE

JX1060V, JX1070V, JX1075V

1шт.

11

10184311

BANJO BOLT,M14 x 1.5 x 27mm

M14x1.5

1шт.

12

2852356

SEALING WASHER

14x20x1.5

1шт.
