(0.05.4[01]) - MAINTENANCE PARTS - FILTERS

Запчасти Case IH JX1075N (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL

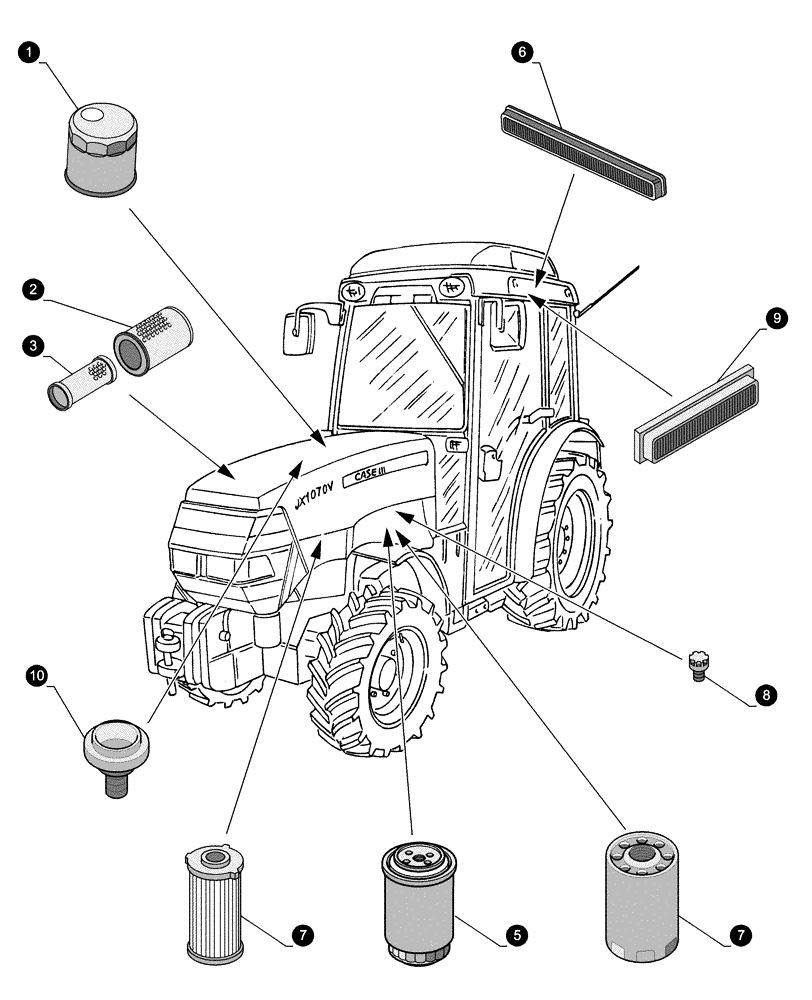

Схема запчастей Case IH JX1075N - (0.05.4[01]) - MAINTENANCE PARTS - FILTERS (00) - GENERAL
7
3
10
5
2
9
1
6
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84227290

ENGINE OIL FILTER

Cartridge Oil Filter

1шт.

Valid with JX1060V-TRACTOR, JX1070N-TRACTOR, JX1070V-TRACTOR, JX1075N-TRACTOR, JX1075V-TRACTOR Models

1шт.

2

87704249

AIR FILTER

Primary Cartridge

1шт.

Valid with JX1060V-TRACTOR, JX1070N-TRACTOR, JX1070V-TRACTOR, JX1075N-TRACTOR, JX1075V-TRACTOR Models

1шт.

3

86982523

FILTER,ELEMENT

Secondary Cartridge

1шт.

Valid with JX1060V-TRACTOR, JX1070N-TRACTOR, JX1070V-TRACTOR, JX1075N-TRACTOR, JX1075V-TRACTOR Models

1шт.

4

84407746

FILTER

Cartridge Oil Filter

1шт.

Valid with JX1060V-TRACTOR, JX1070N-TRACTOR, JX1070V-TRACTOR, JX1075N-TRACTOR, JX1075V-TRACTOR Models

1шт.

5

84214564

FUEL FILTER

Secondary, w/Water Separator

1шт.

Valid with JX1060V-TRACTOR Models

1шт.

6

44911740

AIR FILTER,Carbon

Air Conditioning

1шт.

Valid with JX1060V-TRACTOR Models

1шт.

6

47137321

CAB FILTER

Outer Cartridge

2шт.

Valid with JX1060V-TRACTOR, JX1070N-TRACTOR, JX1070V-TRACTOR Models

1шт.

7

5194879

ELEMENT

Transmission/Pump

1шт.

Valid with JX1060V-TRACTOR, JX1070N-TRACTOR, JX1070V-TRACTOR Models

1шт.

8

9636958

BREATHER

Transmission Box

1шт.

Valid with JX1060V-TRACTOR Models

1шт.
