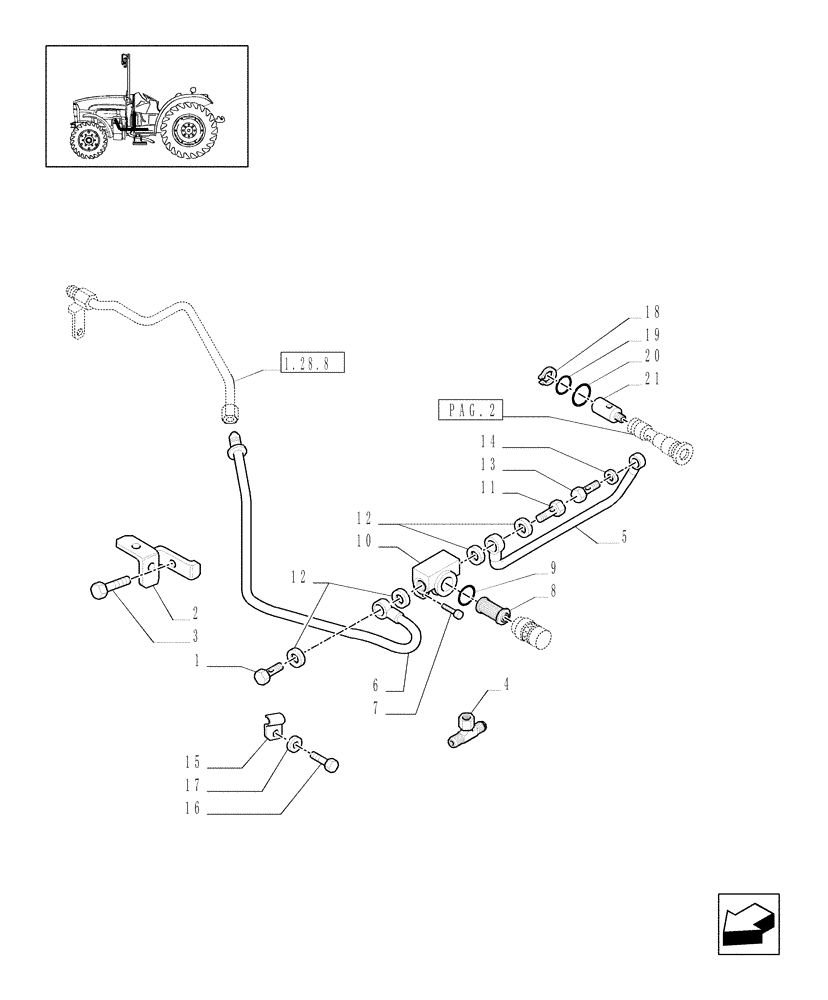

Запчасти Case IH JX1075N (1.28.8/01[01]) - (VAR.271) HI-LO - GEAR LUBRICATION SYSTEM, OIL FILTER, CONNECTIONS AND PIPES (03) - TRANSMISSION

1

44909408

BANJO BOLT

M22

1шт.

2

5177828

BRACKET

1шт.

3

15970611

BOLT,Hex, M10 x 1.25 x 22mm, Cl 5.8, Full Thd

1шт.

4

5168663

HYD CONNECTOR

JX1070N 2WD, JX1075N 2WD

1шт.

5

5177834

RIGID TUBE

1шт.

6

5190925

RIGID TUBE

1шт.

7

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

8

47128208

ELEMENT

1шт.

Valid with JX1060V, JX1070N Models

1шт.

9

5194880

O-RING KIT

1шт.

10

47128207

FILTER ASSY

Incl. Ref. 8.9

1шт.

11

5182095

BANJO BOLT,M22 x 1.5 x 47mm

M22x40

1шт.

12

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

4шт.

13

5188580

BANJO BOLT,Hex, M12/18 x 1.5

1шт.

14

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

3шт.

15

5178447

BRACKET

1шт.

16

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

17

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

18

84021874

SNAP RING,M18, Ext

1шт.

19

14457281

O-RING,0.612" ID x 0.103" Width

JX1070N 2WD, JX1075N 2WD

1шт.

20

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

21

5180935

VALVE

1шт.
