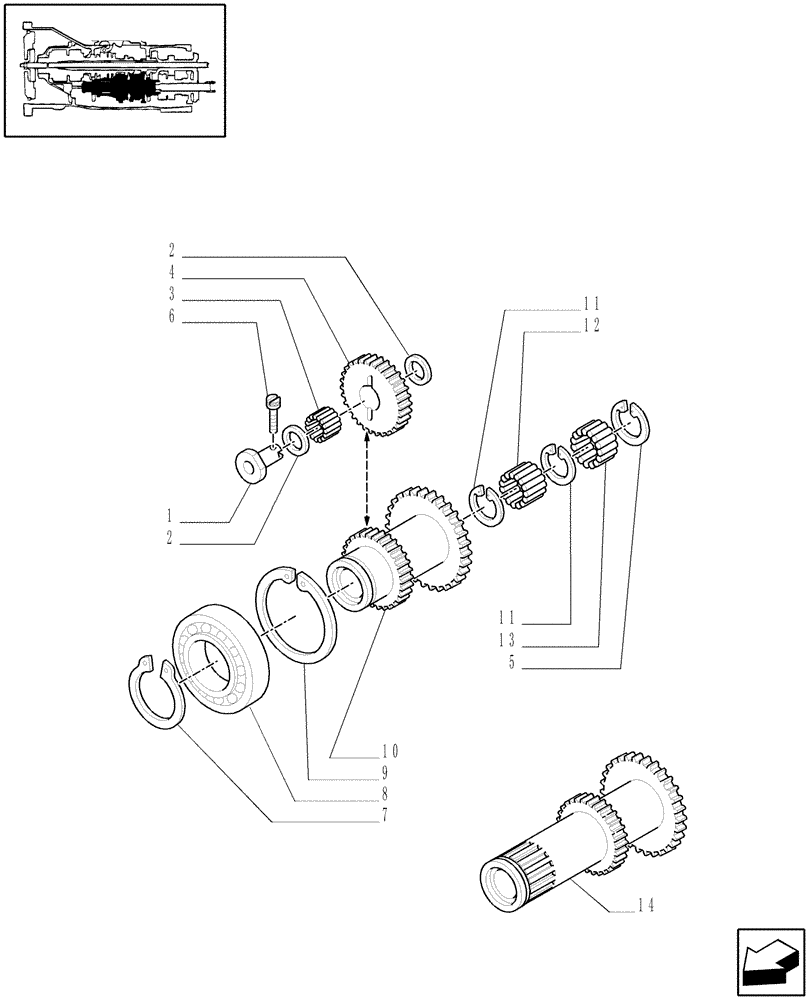

Запчасти Case IH JX1075N (1.28.1[03]) - TRANSMISSION GEARS (03) - TRANSMISSION

1

5176909

PIN,22mm OD x 50mm L

1шт.

2

5176895

THRUST WASHER,22.1mm ID x 40mm OD x 1mm Thk

2шт.

3

5176908

NEEDLE BEARING,22mm ID x 28mm OD x 17mm W

22x28x17

1шт.

4

5176919

GEAR,28T

Rev.

1шт.

5

5168197

SNAP RING,1.5mm Thk, Int

1шт.

6

5183643

ROLL PIN,7.8mm OD x 32mm L

1шт.

7

5138419

SNAP RING,M50

DIA=50

1шт.

8

5168187

BALL BEARING,50mm ID x 90mm OD x 20mm W

50x90x20

1шт.

9

5168154

CIRCLIP,85.6mm ID x 2.6mm Thk

DIA=90

1шт.

10

5176997

GEAR,33T / 24T

Rev/4TH

1шт.

11

5168199

SNAP RING,1.5mm Thk, Int

2шт.

12

5168198

ROLLER BEARING,25mm ID x 33mm OD x 20mm W

25x33x20

1шт.

13

5168196

ROLLER CAGE BEARING,35mm ID x 40mm OD x 27mm W

35x40x27

1шт.

14

5177504

GEAR,33T / 24T

Rev/4TH, VAR.111/1

1шт.
