Запчасти Case IH JX1075N (1.27.7) - (VAR.271) HI-LO - HEAT EXCHANGER, RADIATOR AND FASTENING FRAME (03) - TRANSMISSION

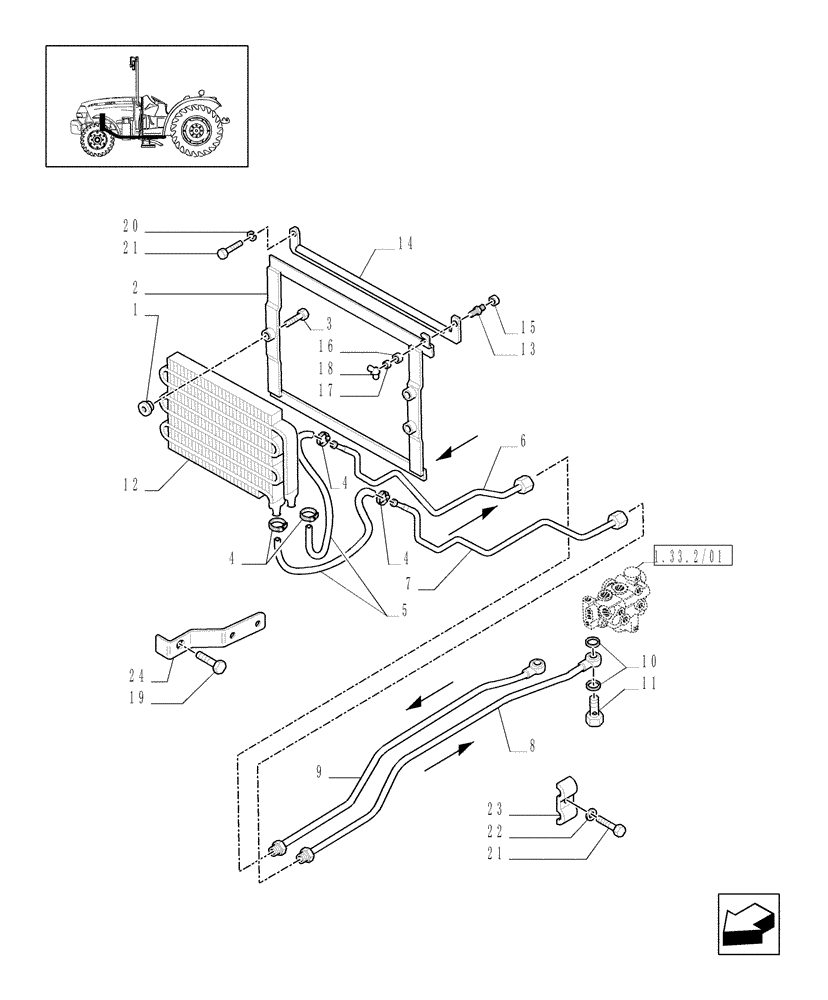

Схема запчастей Case IH JX1075N - (1.27.7) - (VAR.271) HI-LO - HEAT EXCHANGER, RADIATOR AND FASTENING FRAME (03) - TRANSMISSION
4
3
12
4
15
2
8
19
20
21
13
18
7
11
1
1.33.2/01
17
21
5
4
16
23
22
14
9
6
24
10

Артикул

Название

Примечание

Количество

1

5175390

PAD

3шт.

2

5176664

FRAME

1шт.

3

14432224

HEX SOC SCREW,M6 x 22mm, Cl 8.8, Full Thd

3шт.

4

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

DIA=16-25

4шт.

5

5143837

HYDRAULIC HOSE,13.00 mm ID

L=687

1шт.

6

5186307

RIGID TUBE

Delivery, JX1060V, JX1070V, JX1075V

1шт.

6

5190943

RIGID TUBE

Delivery, JX1070N, JX1075N

1шт.

7

5186306

RIGID TUBE

Return, JX1060V, JX1070V, JX1075V

1шт.

7

5190945

RIGID TUBE

Return, JX1070N, JX1075N

1шт.

8

5177868

RIGID TUBE

Return, JX1070N, JX1075N

1шт.

9

5177864

RIGID TUBE

Delivery, JX1070N, JX1075N

1шт.

10

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

JX1070N, JX1075N

4шт.

11

5184345

BANJO BOLT,M18 x 1.5 x 34mm

JX1070N, JX1075N

2шт.

12

83945933

OIL COOLER

Assy.

1шт.

13

5174191

SCREW

1шт.

14

5176134

GUIDE

2шт.

15

12598374

LOCK WASHER

DIA=8

1шт.

16

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

18

10102004

WING NUT

M8

1шт.

19

15980324

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

20

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

21

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

3шт.

21

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

21

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

22

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

23

5177880

CLAMP,14mm ID

1шт.

24

5186309

BRACKET

1шт.

JX1060V 2WD, JX1070V 2WD, JX1075V 2WD, JX1070N, JX1075N

1шт.

Выбрано товаров: 29
