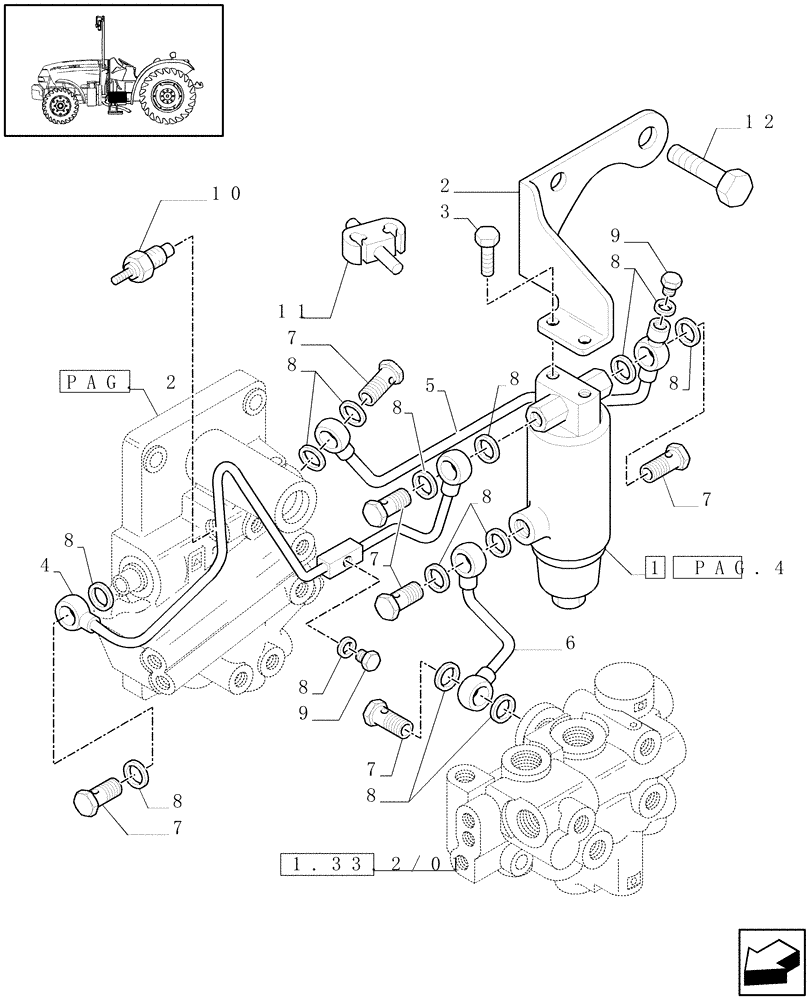

Запчасти Case IH JX1075N (1.27.3/01[03]) - (VAR.297) HI-LO NA - CLUTCH ENGAGEMENT, PIPES (03) - TRANSMISSION

1

5174487

ACCUMULATOR

Assy., Serial Range: -C5583

1шт.

1

87622906

ACCUMULATOR

, Start Serial: D5583

1шт.

2

5187886

BRACKET

1шт.

3

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

4

5193220

RIGID TUBE

Forward

1шт.

5

5191298

RIGID TUBE

Backword

1шт.

6

5191273

RIGID TUBE

1шт.

7

5176180

BANJO BOLT,M10 x 1 x 17.5mm

Hex.

5шт.

7

5181983

HYD CONNECTOR,M10 x 1 27mm L

Round

1шт.

8

10260960

SEALING WASHER,M10.2 x 14 x 1.5

14шт.

9

11903011

PLUG,M10 x 1 x 11, Cl5.8

2шт.

10

82028133

SENSOR,3/8"-18

Trans. Temp.

1шт.

11

14581180

SPRING CLIP,2x6.3mm OD x 37mm L

1шт.

12

11288024

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

2WD

2шт.
