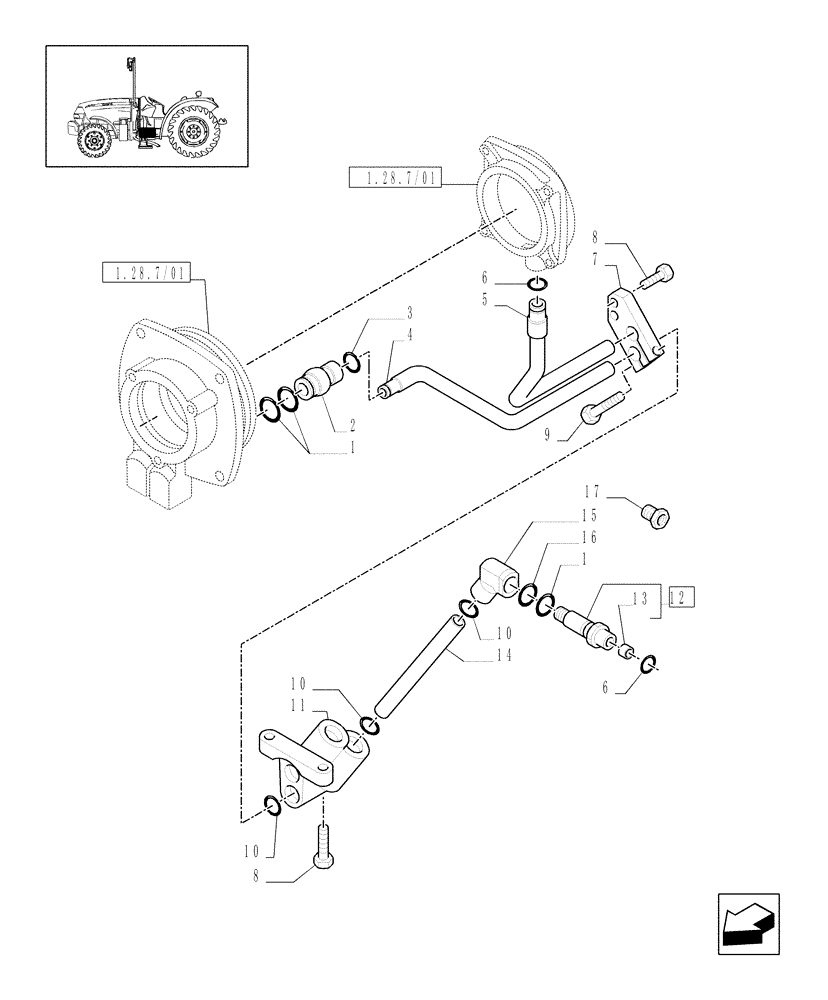

Запчасти Case IH JX1075N (1.27.3[05]) - (VAR.271) HI-LO - CLUTCH ENGAGEMENT, MANIFOLD (03) - TRANSMISSION

1

5174041

O-RING,2.62mm Thk x 13.1mm ID, 70 Duro

4шт.

2

5173962

HYD CONNECTOR,46mm L

1шт.

3

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

4

5176044

RIGID TUBE

1шт.

5

5176047

RIGID TUBE

1шт.

6

14456881

O-RING,0.362" ID x 0.103" Width

3шт.

7

5176052

BRACKET

1шт.

8

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

8

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

8

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

9

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

10

5103230

O-RING,2.62mm Thk x 11.91mm ID

2.62 x 11.91

6шт.

11

5177629

MANIFOLD

1шт.

12

5177578

HYD CONNECTOR

Assy., 2WD

2шт.

13

5176125

VALVE SEAT,3.5mm ID x 8mm OD

2WD

1шт.

14

5176959

HYD TUBE,153mm L

4WD

2шт.

14

5176059

RIGID TUBE

2WD

2шт.

15

5177627

HYD CONNECTOR,M14 x 1.5 x 24mm

2шт.

16

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

17

5177878

HYD CONNECTOR

4WD

2шт.
