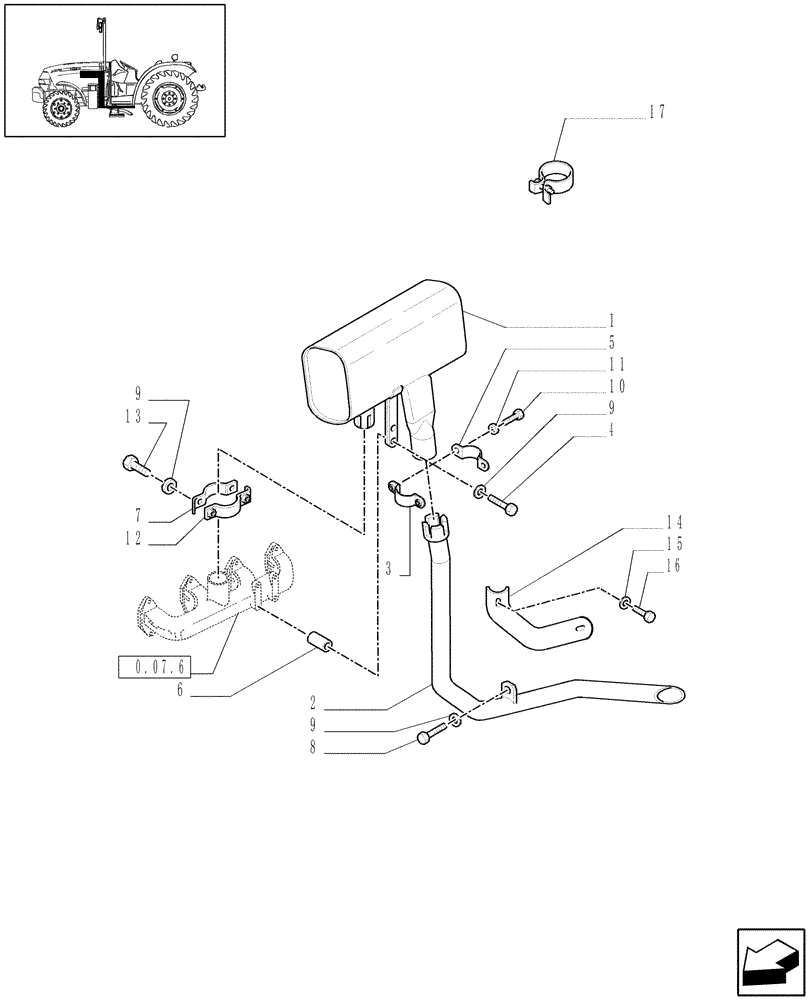

Запчасти Case IH JX1070N (1.15.0[01]) - MUFFLER (02) - ENGINE EQUIPMENT

1

5172649

MUFFLER,W/ Spark Arrester

1шт.

2

5186251

RIGID TUBE

1шт.

2

5188934

RIGID TUBE

VAR.135

1шт.

3

5180679

HOSE CLIP

, Serial Range: -C5751

1шт.

4

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

5

5183964

HOSE CLIP

, Serial Range: -C5751

1шт.

6

13605915

SPACER,9mm ID x 18mm OD x 15mm L

8.5x18x15

2шт.

7

5181589

HOSE CLIP

1шт.

8

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

1шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

10

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

, Serial Range: -C5751

2шт.

11

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

, Serial Range: -C5751

2шт.

12

5181587

CLAMP

1шт.

13

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

14

5186252

GUARD

VAR.135

1шт.

15

17094714

LOCK WASHER,M6 x 13

VAR.135

2шт.

16

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

VAR.135

2шт.

17

87667303

HOSE CLAMP,58mm - 58.5mm

, Start Serial: D5751

1шт.
