(1.98.0[03]) - DECALS

Запчасти Case IH JX1070N (1.98.0[03]) - DECALS (13) - DECALS

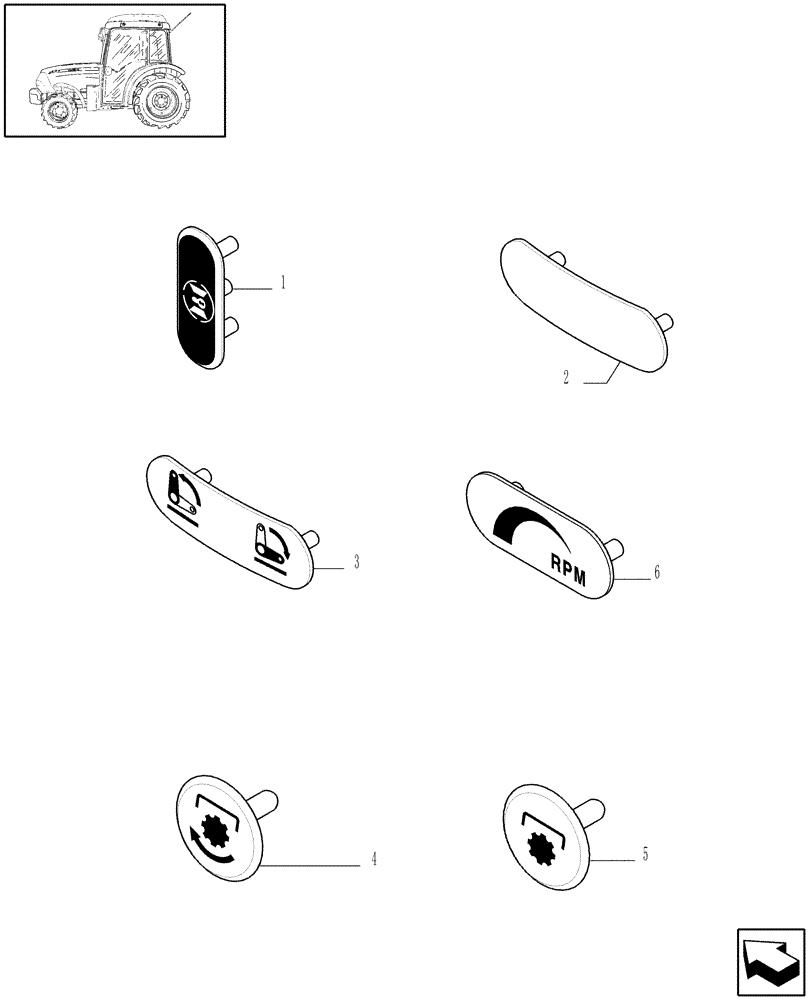

Схема запчастей Case IH JX1070N - (1.98.0[03]) - DECALS (13) - DECALS
3
5
4
1
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5191503

DATA PLAQUE

Differential Lock, JX1070N, JX1075N, W/CAB

1шт.

2

5175340

COVER PLATE

L=74.6, JX1070N, JX1075N

1шт.

2

5153948

COVER PLATE

Blank, L=54, W/CAB

1шт.

3

5175274

IDENTITY PLATE

Lift-O-Matic, W/CAB4

1шт.

4

5175126

IDENTITY PLATE

PTO Control, Disengage, L/CAB

1шт.

5

5175127

IDENTITY PLATE

PTO Control, Engage, L/CAB

1шт.

6

5178109

IDENTITY PLATE

VAR.821-832

1шт.

Выбрано товаров: 7
