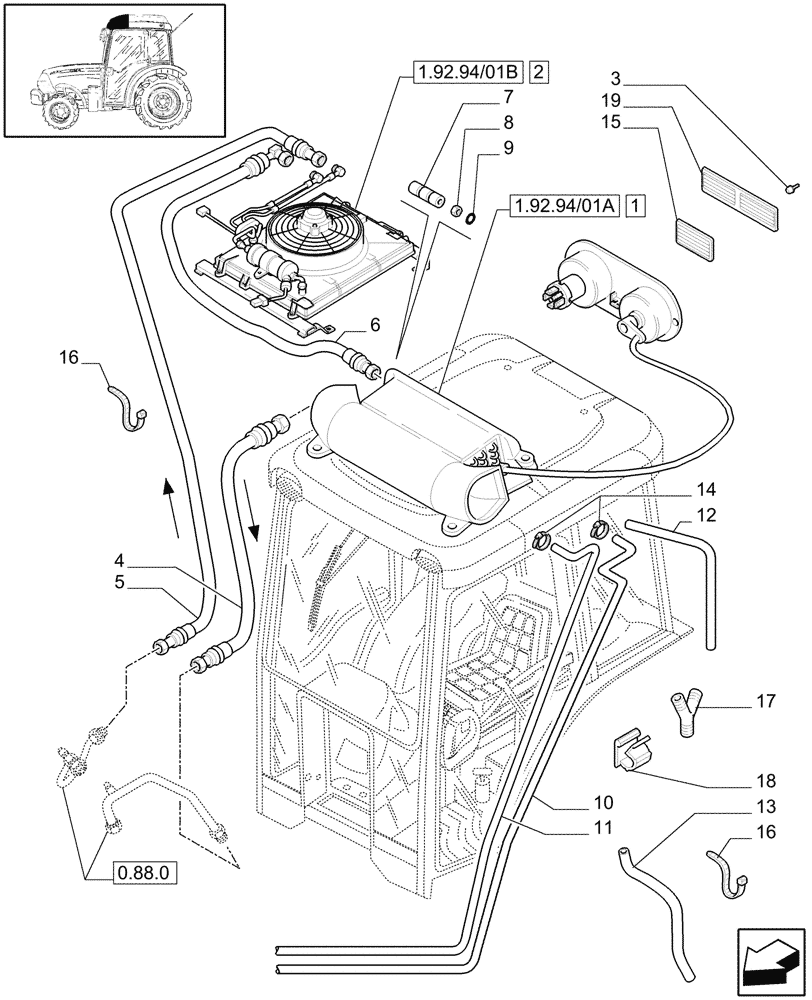

Запчасти Case IH JX1070N (1.92.94/01[03]) - (VAR.608) AIR CONDITIONING/CONDITIONER - PIPES AND RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB

1

47131165

AIR CONDITIONER

1шт.

2

5197023

CONDENSER

Assy.

1шт.

3

15152011

BALL STUD

BALL PIN

10шт.

4

47133699

FLEXIBLE HOSE

1шт.

FROM AIR CONDITIONER TO COMPRESSOR

1шт.

5

47133697

FLEXIBLE HOSE

1шт.

FROM COMPRESSOR TO CONDENSER

1шт.

6

47133503

FLEXIBLE HOSE,10.3mm ID x 382mm L

1шт.

FROM CONDENSER EVAPORATOR, MM.382

1шт.

7

5189704

HYD CONNECTOR

1шт.

7

5194336

HYD CONNECTOR

2 x 22

1шт.

8

5195331

NUT

3/4

2шт.

8

5194591

NUT

5/8

2шт.

9

10261750

GASKET

20 x 18 x 1.5

2шт.

10

19053382

HOSE,10.00 mm

10 x 15, L=1445

1шт.

10

5143838

FLEXIBLE HOSE

DIA=14, L=2400

1шт.

11

19053382

HOSE,10.00 mm

10 x 15, L=1560

1шт.

11

D=14, L=2500

1шт.

12

19053382

HOSE,10.00 mm

10 x 15, L=310

1шт.

13

5186461

TUBE

Wrinkled. 300mm L

2шт.

14

13423371

HOSE CLAMP,13.6mm - 15.1mm

DIA=16-25

2шт.

15

47133310

BEZEL

2шт.

16

14560287

CABLE TIE,207.00mm L

COLLAR

2шт.

17

5186511

HYD CONNECTOR

2шт.

18

5182865

CLIP

2шт.

19

47133308

BEZEL

1шт.
