(1.92.94/01[01]) - (VAR.608) AIR CONDITIONING-CONDITIONER - RELEVANT PARTS

Запчасти Case IH JX1070N (1.92.94/01[01]) - (VAR.608) AIR CONDITIONING-CONDITIONER - RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB

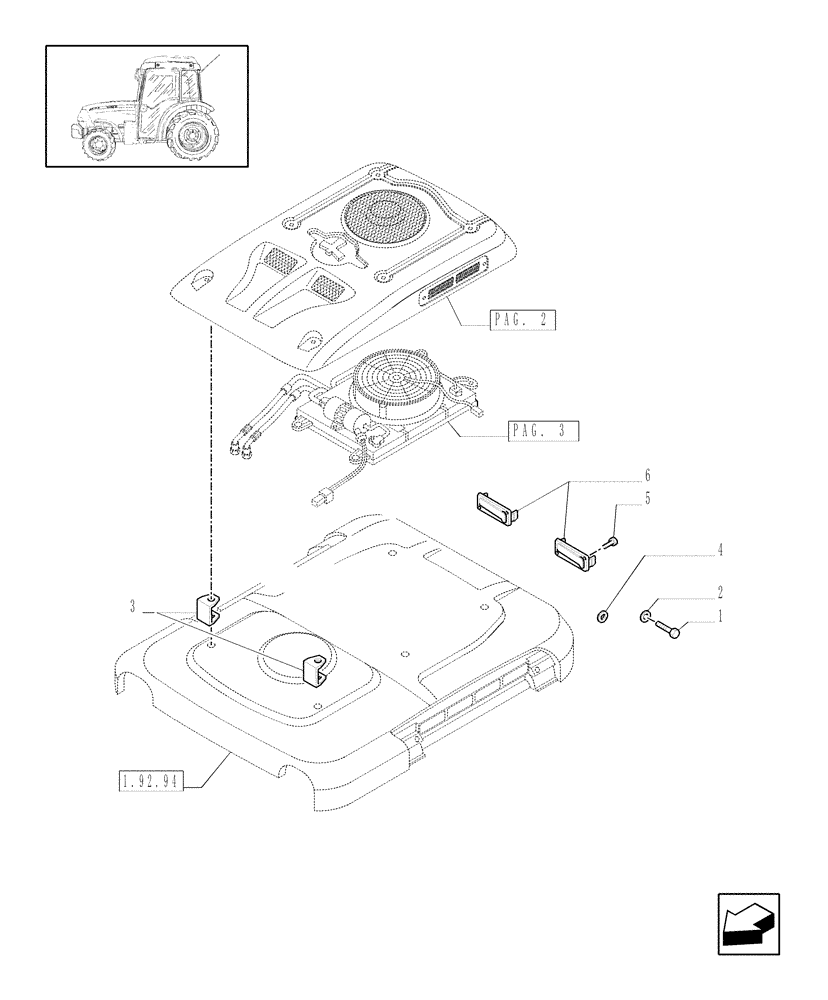

Схема запчастей Case IH JX1070N - (1.92.94/01[01]) - (VAR.608) AIR CONDITIONING-CONDITIONER - RELEVANT PARTS (10) - OPERATORS PLATFORM/CAB
1.92.94
1
5
2
pag. 2
pag. 3
3
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

1

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

2

12647104

WASHER,8.15mm ID x 20mm OD x 3mm Thk

1шт.

3

44911923

BRACKET

2шт.

4

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

8шт.

5

15909407

SELF-TAP SCREW,Pozidriv Oval Hd, M3.5 x 1.3 x 19mm

1шт.

6

82007656

DIFFUSER

2шт.
