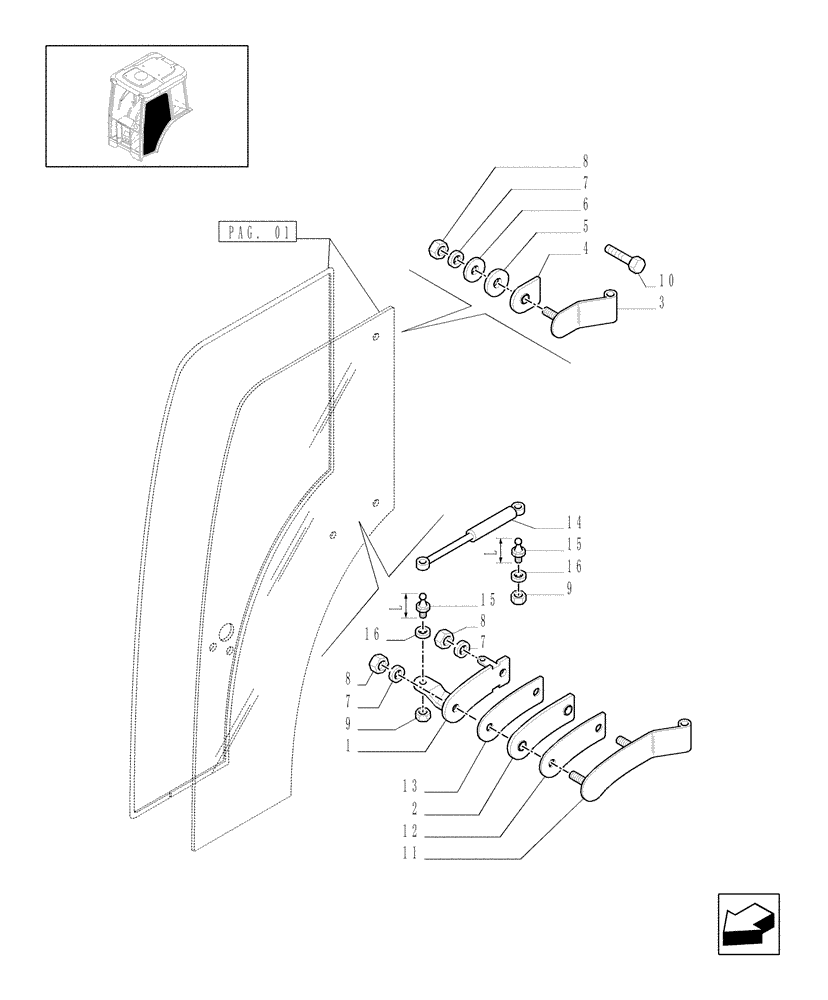

Запчасти Case IH JX1070N (1.92.92[02]) - CAB - WINDOWS, DOORS AND FASTENING HINGES - C5188 (10) - OPERATORS PLATFORM/CAB

1

44911526

PLATE

RH

1шт.

1

44911527

PLATE

LH

1шт.

2

44910532

SEAL

Outer

2шт.

3

44911540

HINGE

RH

1шт.

3

44911541

HINGE

LH

1шт.

4

44910469

GASKET

2шт.

5

5124800

SEALING RING,20mm ID x 36mm OD x 5mm Thk

SEALRING

2шт.

6

44911666

SEAL,6mm ID x 32mm OD x 3mm Thk

4шт.

7

12646231

WASHER

M8 x 35

4шт.

8

5182241

NUT,Hex, M8 x 1.25 x 8.5mm, Cl 04

M8

6шт.

9

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

4шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

6шт.

11

44911538

HINGE

RH

1шт.

11

44911539

HINGE

LH

1шт.

12

44910533

SEAL

2шт.

13

44911552

SEAL

Inner

2шт.

14

44910474

GAS STRUT,285mm Extended, 190mm Compressed

2шт.

15

44910148

BALL STUD,M8 x 1.25

L=32

2шт.

15

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN L = 29.5

2шт.

16

5182303

WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

8x15

4шт.
