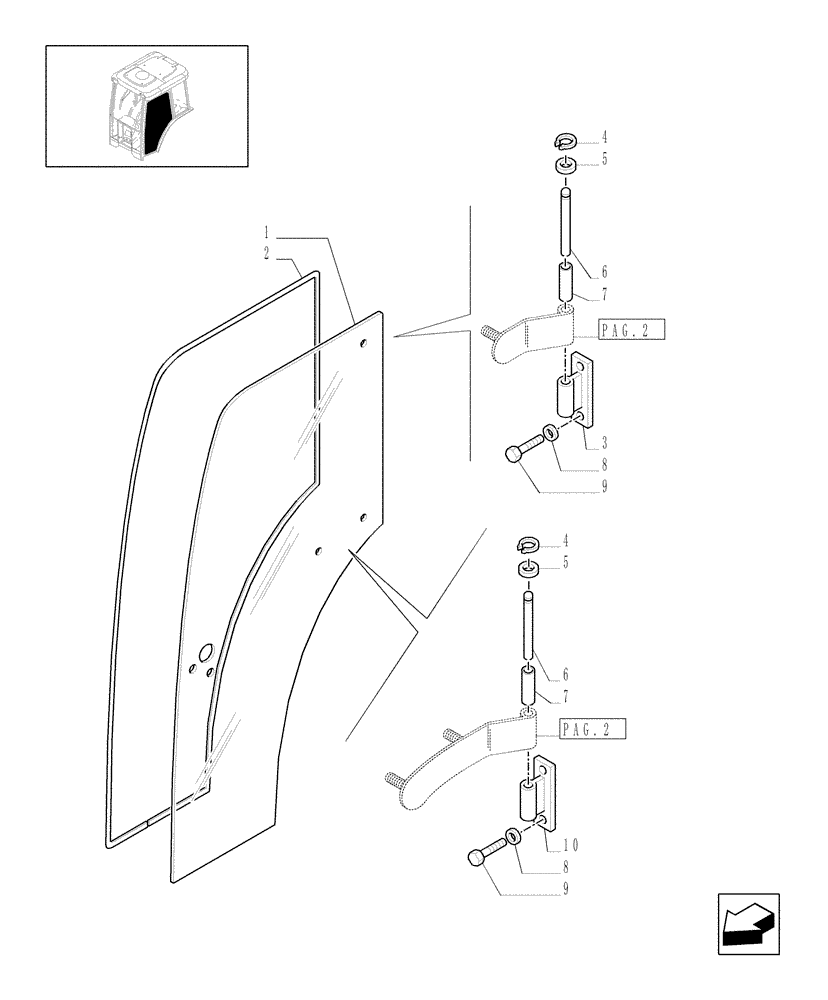

Запчасти Case IH JX1070N (1.92.92[01]) - CAB - DOORS, WINDOWS, HINGES AND FASTENING PINS - C5188 (10) - OPERATORS PLATFORM/CAB

1

5196840

CAB GLASS ASSY

RH

1шт.

1

5196841

CAB GLASS ASSY

LH

1шт.

2

47123094

DOOR SEAL

2шт.

3

44910466

HINGE

2шт.

4

11065970

CIRCLIP,M10

Ext, M10

8шт.

5

44910565

SEALING WASHER,10.5mm ID x 20mm OD x 2mm Thk

Nylon

4шт.

6

5186477

PIN,9.6mm OD x 118mm L

4шт.

7

44910564

BUSHING,10mm ID x 12mm OD x 50mm L

Nylon

4шт.

8

5182265

WASHER

8x17

8шт.

9

5182261

BOLT,Hex, M8 x 1.25 x 20mm

M8x70

8шт.

10

44910467

HINGE

2шт.
