(1.92.85/08A[01]) - (VAR.956/1) WHEAT PVC SEAT WITHOUT BELTS, WITH SWITCH - L/CAB

Запчасти Case IH JX1070N (1.92.85/08A[01]) - (VAR.956/1) WHEAT PVC SEAT WITHOUT BELTS, WITH SWITCH - L/CAB (10) - OPERATORS PLATFORM/CAB

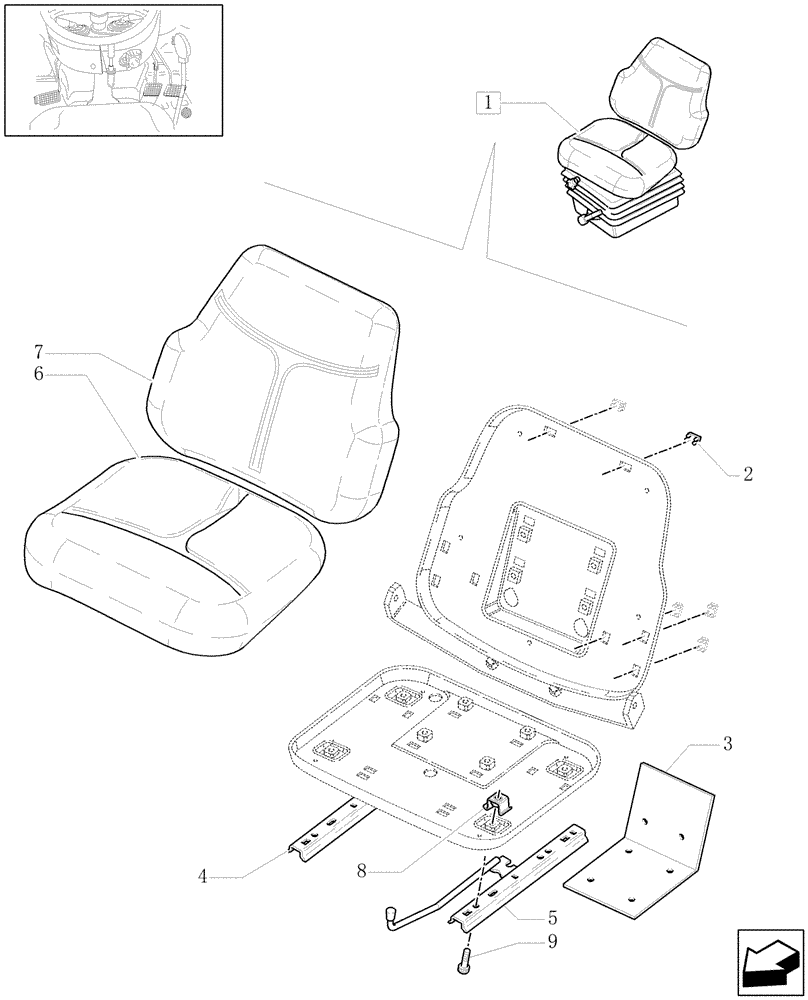

Схема запчастей Case IH JX1070N - (1.92.85/08A[01]) - (VAR.956/1) WHEAT PVC SEAT WITHOUT BELTS, WITH SWITCH - L/CAB (10) - OPERATORS PLATFORM/CAB
8
3
7
4
5
2
1
6
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47132534

DRIVER SEAT

WHEAT PVC SEAT, L/BELTS, W/SWITCH

1шт.

2

5197874

RETAINER COLLAR

8шт.

3

47130730

PLATE

1шт.

4

47136924

GUIDE

RH

1шт.

5

47130725

GUIDE

LH

1шт.

6

47132689

SEAT CUSHION

1шт.

7

47132691

SEAT BACK

1шт.

8

14649390

NUT

4шт.

9

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.
