(1.92.85/02A[01]) - (VAR.197) CASE SEAT, WITH BELTS, WITHOUT SWITCH - W/CAB - BREAKDOWN - C5644

Запчасти Case IH JX1070N (1.92.85/02A[01]) - (VAR.197) CASE SEAT, WITH BELTS, WITHOUT SWITCH - W/CAB - BREAKDOWN - C5644 (10) - OPERATORS PLATFORM/CAB

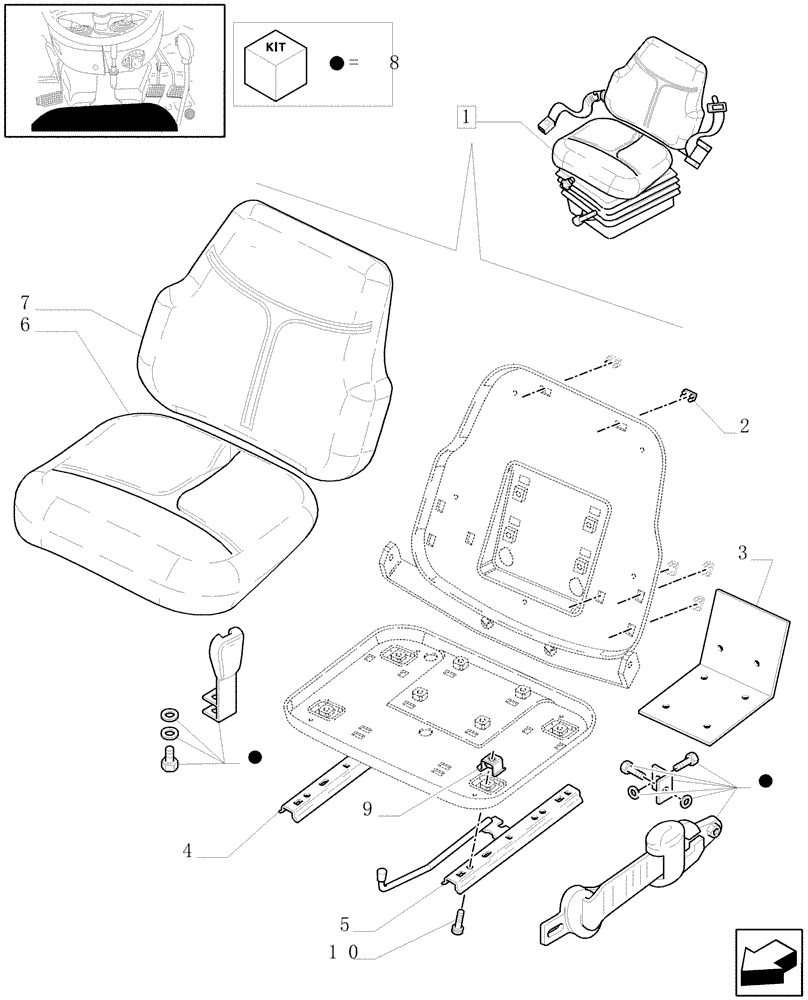

Схема запчастей Case IH JX1070N - (1.92.85/02A[01]) - (VAR.197) CASE SEAT, WITH BELTS, WITHOUT SWITCH - W/CAB - BREAKDOWN - C5644 (10) - OPERATORS PLATFORM/CAB
8
2
8
1
9
7
3
6
10
8
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47133674

DRIVER SEAT

CASE CLOTH, W/SEAT BELT, L/SWITCH

1шт.

2

5197874

RETAINER COLLAR

8шт.

3

47130730

PLATE

1шт.

4

47136924

GUIDE

RH

1шт.

5

47130725

GUIDE

LH

1шт.

6

47132694

SEAT BACK

1шт.

7

47132693

SEAT CUSHION

1шт.

8

47130720

KIT

1шт.

9

14649390

NUT

4шт.

10

14302824

HEX SOC SCREW,M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.
