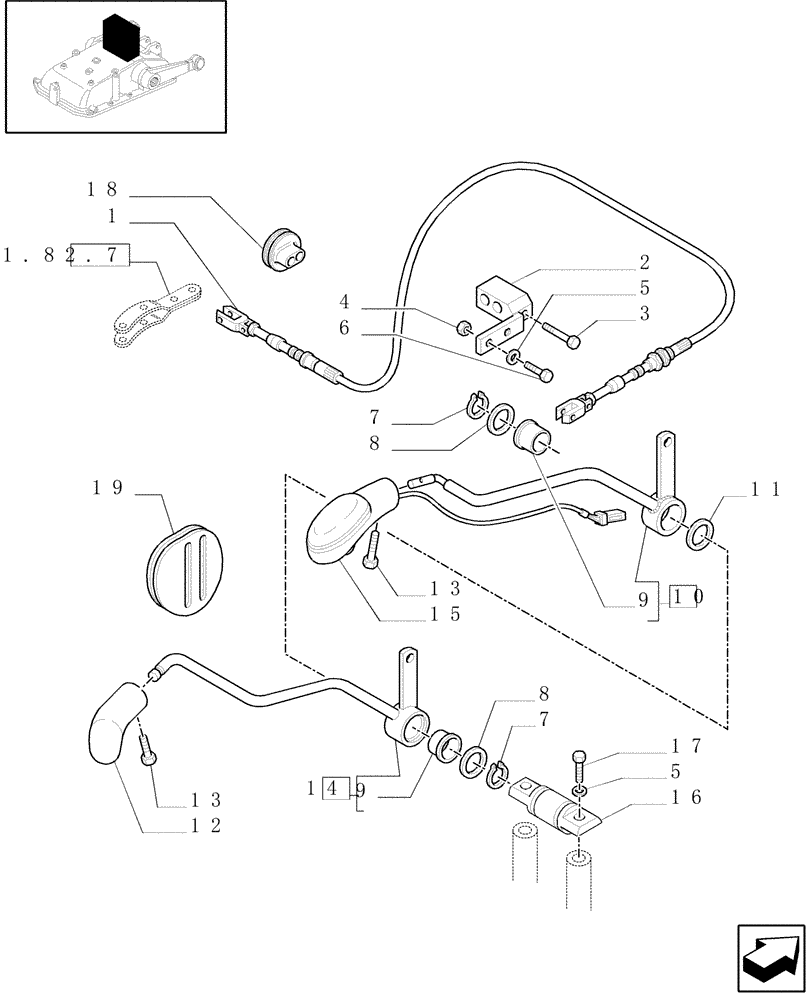

Запчасти Case IH JX1070N (1.92.82/05[01]) - (VAR.419/1) 3 REM. VALVES FOR ELECTRONIC LIFTER W/HYDRAULIC DIVIDER - CONTROL LEVER (10) - OPERATORS PLATFORM/CAB

1

5199203

CABLE,2955mm L

1шт.

2

5187294

BLOCK

1шт.

3

14358824

HEX SOC SCREW,M5 x 40mm, Cl 8.8, Full Thd

1шт.

4

16104121

NUT,M8 x 1.25, Cl 10

2шт.

5

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

11066976

SNAP RING,M21, Ext

2шт.

8

5126031

WASHER,21mm ID x 35mm OD x 2mm Thk

D = 35 x 21 x 2

2шт.

9

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

2шт.

10

47132376

LEVER

Assy., Incl. 9,13,15

1шт.

11

5154840

SHIM,21mm ID x 35mm OD x 2mm Thk

1шт.

12

81865932

KNOB

Green

1шт.

13

13309177

SCREW,Pozidriv Oval Hd, Csk, M4 x 14mm, Full Thd

2шт.

14

5187576

LEVER

Assy., Incl. 9

1шт.

15

47132373

KNOB

1шт.

16

5133375

PIN,20mm OD x 100mm L

1шт.

17

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

18

5191036

GROMMET

1шт.

19

5188994

BELLOWS

1шт.
